daytime matrix
- Aluminum profile with connection cable for converter
- Supplied without LED modules!
- Power supply (converter) has to be bought separately!
- Dustproof and waterproof (IP67)
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
The daytime matrix-series is setting new standards by combining variability, functionality and aesthetics. Just as unique as your own tank!
Provide the inhabitants of your tank with long term habitat-appropriate lighting by the help of this modern, innovative and high-quality LED lights. In addition to the high, spot-like light intensity (up to 1.800 lumen per cluster-module-surface of 52x52mm) the cluster creates natural light reflections, curl and shadow effects inside the tank. You will be delighted by the nearly limitless variability!

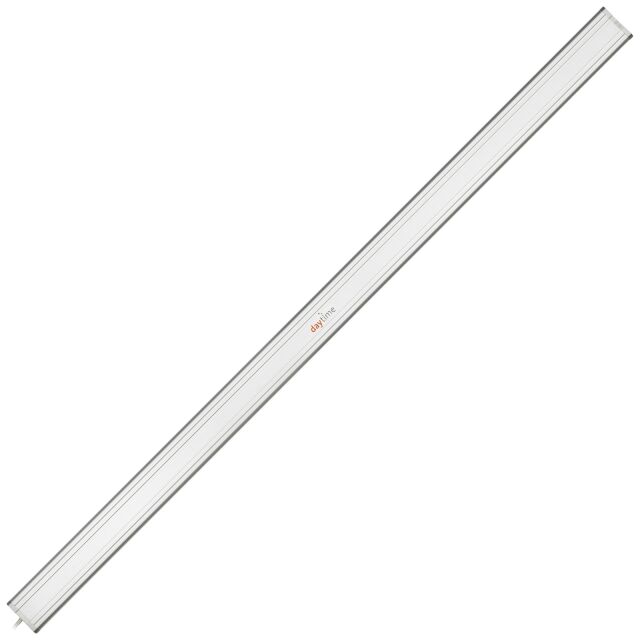

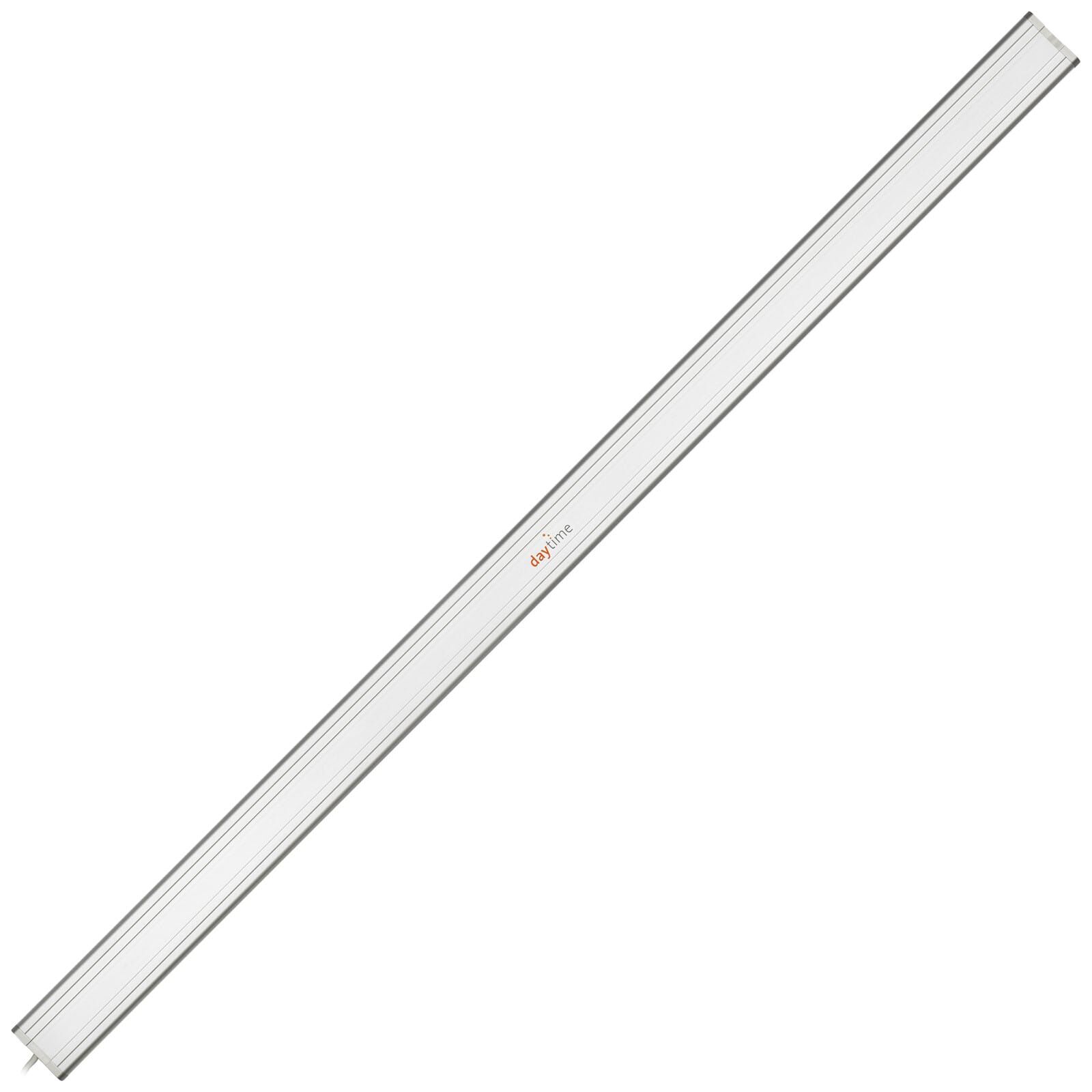

The sturdy aluminium profile is very resistant due to the anodization of its surface. Even in harsh salt water environment.
The sophisticated setup combines a timeless design with an ideal heat regulation. Due to a relatively large surface area heat dissipation is extraordinary and makes for a prolonged life of more than 50.000 hours without any significant loss of light output. Centrepiece of this lamp is the latest LED technology of market leader SEOUL SEMICONDUCTOR (SSC).
Regarding the range of white light, this LED has an efficiency of up to 230 lm/W and a CRI (colour light index) of up to 90. This saves up to 50% energy compared to conventional lamps while simultaneously increasing the brilliance.
Particularly noteworthy is the contacting of the LED modules which was specially developed for the matrix-series. It enables arbitrary placement of the modules. You can mount the modules on your own conveniently to the LED profile. So you can, for example, mount the modules densely over particular groups of light-hungry plants. Even a subsequent upgrade of a matrix is possible.
By means of the daytime BC16 daytime matrix can be controlled and dimmed. This makes daytime sequences, sunrises and sunsets and even break times possible.
All important information compactly summarized: Daytime - Infoflyer
daytime - matrix lights in larger sizes are available individually on request. For an offer, please send us an email to yoohoo@aquasabi.com.
If there are any questions about the configuration, we will be happy to help via email. We will be happy to advise or put together a completely customised daytime LED lighting system.
Features
- Supplied without LED-Modules - These must be ordered separately
- Easy installation of the modules on your own - even retrospectively
- Universal Adaptor is already integrated in the profile (extendable)
- Several other adaptors are also available
- There are special Adaptor-Profiles for covers by EHEIM and JUWEL
- 24V Converter is additionally required in any case
- Up to 230 lumen per Watts
- Sturdy, slim aluminium profile with best heat regulation
- Anodized layer for highest hardiness
- incl. splash guard - increases cleaning comfort to a maximum (can be removed for cleaning)
- GORE-membrane acts as guarantor for constant conditions inside the lamp (pressure equalization and keeping out humidity
- LED-technology of market leader (SEOUL SEMICONDUCTOR)
- Very good colour rendering up to CRI 90
- 120° angle of radiation
- Position-independent modular construction of the LED modules
- LED life span of aprox. 60.000 hours
- Dust and waterproof (IP67)
Usage
Profile | Max. possible Modules |
---|---|
matrix 20.0 | 1 Module |
matrix 30.0 | 1 Modules |
matrix 40.0 | 2 Modules |
matrix 50.0 | 3 Modules |
matrix 60.0 | 4 Modules |
matrix 70.0 | 5 Modules |
matrix 80.0 | 6 Modules |
matrix 90.0 | 7 Modules |
matrix 100.0 | 8 Modules |
matrix 110.0 | 9 Modules |
matrix 120.0 | 10 Modules |
matrix 130.0 | 11 Modules |
matrix 140.0 | 12 Modules |
matrix 150.0 | 13 Modules |
matrix 160.0 | 14 Modules |
matrix 170.0 | 14 Modules |
matrix 180.0 | 15 Modules |
matrix 190.0 | 16 Modules |
matrix 200.0 | 17 Modules |
Dimension
daytime matrix 20.0 | |
---|---|
Profile length without adapters | 166 mm |
Suitable for aquariums |
|
with universal adapter (included) | 200 - 300 mm |
with Swing-Adaptor | 200 - 300 mm |
with Insertion / Bolt On-Adaptor | 230 - 300 mm |
daytime matrix 30.0 | |
---|---|
Profile length without adapters | 250 mm |
Suitable for aquariums | |
with universal adapter (included) | 280 - 384 mm |
with Swing-Adaptor | 250 - 384 mm |
with Insertion / Bolt On-Adaptor | 280 - 384 mm |
daytime matrix 40.0 | |
---|---|
Profile length without adapters | 350 mm |
Suitable for aquariums | |
with universal adapter (included) | 380 - 484 mm |
with Swing-Adaptor | 350 - 484 mm |
with Insertion / Bolt On-Adaptor | 380 - 484 mm |
daytime matrix 50.0 | |
---|---|
Profile length without adapters | 450 mm |
Suitable for aquariums | |
with universal adapter (included) | 480 - 584 mm |
with Swing-Adaptor | 450 - 584 mm |
with Insertion / Bolt On-Adaptor | 480 - 584 mm |
with T5-Adaptor | 438 mm / 24 Watts |
with T8-Adaptor | 438 mm / 15 Watts |
daytime matrix 60.0 | |
Profile length without adapters | 550 mm |
Suitable for aquariums | |
with universal adapter (included) | 580 - 684 mm |
with Swing-Adaptor | 550 - 684 mm |
with Insertion / Bolt On-Adaptor | 580 - 684 mm |
with T5-Adaptor | 517 mm / 13 Watts |
daytime matrix 70.0 | |
Profile length without adapters | 650 mm |
Suitable for aquariums | |
with universal adapter (included) | 680 - 784 mm |
with Swing-Adaptor | 650 - 784 mm |
with Insertion / Bolt On-Adaptor | 680 - 784 mm |
with T5-Adaptor | 549 mm / 24 & 28 Watts |
with T8-Adaptor | 590 mm / 18 Watts |
daytime matrix 80.0 | |
Profile length without adapters | 750 mm |
Suitable for aquariums | |
with universal adapter (included) | 780 - 884 mm |
with Swing-Adaptor | 750 - 884 mm |
with Insertion / Bolt On-Adaptor | 750 - 884 mm |
with T5-Adaptor | 742 mm / 35 Watts |
with T8-Adaptor | 742 mm / 25 Watts |
daytime matrix 90.0 | |
Profile length without adapters | 850 mm |
Suitable for aquariums | |
with universal adapter (included) | 880 - 984 mm |
with Swing-Adaptor | 850 - 984 mm |
with Insertion / Bolt On-Adaptor | 880 - 984 mm |
with T5-Adaptor | 849 mm / 39 & 45 Watts |
with T8-Adaptor | 895 mm / 30 Watts |
daytime matrix 100.0 | |
Profile length without adapters | 950 mm |
Suitable for aquariums | |
with universal adapter (included) | 980 - 1.084 mm |
with Swing-Adaptor | 950 - 1.084 mm |
with Insertion / Bolt On-Adaptor | 980 - 1.084 mm |
daytime matrix 110.0 | |
Profile length without adapters | 1.050 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.080 - 1.184 mm |
with Swing-Adaptor | 1.050 - 1.184 mm |
with Insertion / Bolt On-Adaptor | 1.080 - 1.184 mm |
with T5-Adaptor | 1.047 mm / 54 Watts |
with T8-Adaptor | 1.047 mm / 38 Watts |
daytime matrix 120.0 | |
Profile length without adapters | 1.150 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.180 - 1.284 mm |
with Swing-Adaptor | 1.150 - 1.284 mm |
with Insertion / Bolt On-Adaptor | 1.180 - 1.284 mm |
with T5-Adaptor | 1.149 mm / 54 Watts |
daytime matrix 130.0 | |
Profile length without adapters | 1.250 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.280 - 1.384 mm |
with Swing-Adaptor | 1.250 - 1.384 cm |
with Insertion / Bolt On-Adaptor | 1.280 - 1.384 mm |
with T5-Adaptor | 1.200 mm / 54 Watts |
with T8-Adaptor | 1.200 mm / 36 Watts |
daytime matrix 140.0 | |
Profile length without adapters | 1.350 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.380 - 1.484 mm |
with Swing-Adaptor | 1.350 - 1.484 mm |
with Insertion / Bolt On-Adaptor | 1.380 - 1.484 mm |
daytime matrix 150.0 | |
Profile length without adapters | 1.450 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.480 - 1.584 mm |
with Swing-Adaptor | 1.450 - 1.584 mm |
with Insertion / Bolt On-Adaptor | 1.480 - 1.584 mm |
with T5-Adaptor | 1.449 mm / 80 Watts |
with T8-Adaptor | 1.500 mm / 58 Watts |
daytime matrix 160.0 | |
Profile length without adapters | 1.550 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.580 - 1.684 mm |
with Swing-Adaptor | 1.550 - 1.684 mm |
with Insertion / Bolt On-Adaptor | 1.580 - 1.684 mm |
with Acrylic Adaptor | 1.560 mm - 1.720 mm |
daytime matrix 170.0 | |
Profile length without adapters | 1.650 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.680 - 1.784 mm |
with Swing-Adaptor | 1.650 - 1.784 mm |
with Insertion / Bolt On-Adaptor | 1.680 - 1.784 mm |
with Acrylic Adaptor | 1.660 mm - 1.820 mm |
daytime matrix 180.0 | |
Profile length without adapters | 1.750 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.780 - 1.884 mm |
with Swing-Adaptor | 1.750 - 1.884 mm |
with Insertion / Bolt On-Adaptor | 1.780 - 1.884 mm |
with Acrylic Adaptor | 1.760 mm - 1.920 mm |
daytime matrix 190.0 | |
Profile length without adapters | 1.850 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.880 - 1.984 mm |
with Swing-Adaptor | 1.850 - 1.984 mm |
with Insertion / Bolt On-Adaptor | 1.880 - 1.984 mm |
with Acrylic Adaptor | 1.860 mm - 2.020 mm |
daytime matrix 200.0 | |
Profile length without adapters | 1.950 mm |
Suitable for aquariums | |
with universal adapter (included) | 1.980 - 2.084 mm |
with Swing-Adaptor | 1.950 - 2.084 mm |
with Insertion / Bolt On-Adaptor | 1.980 - 2.084 mm |
with Acrylic Adaptor | 1.960 mm - 2.120 mm |
Other adaptors, such as a cable suspension for up to three LED profiles are also available.
There are special adaptor profiles for covers by Eheim, which allow a very simple conversion.
daytime
Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
General information
Item no. |
|
EAN | 4260432787924 |
Weight | 2,13 kg |
Shipping weight | 2,20 kg |
