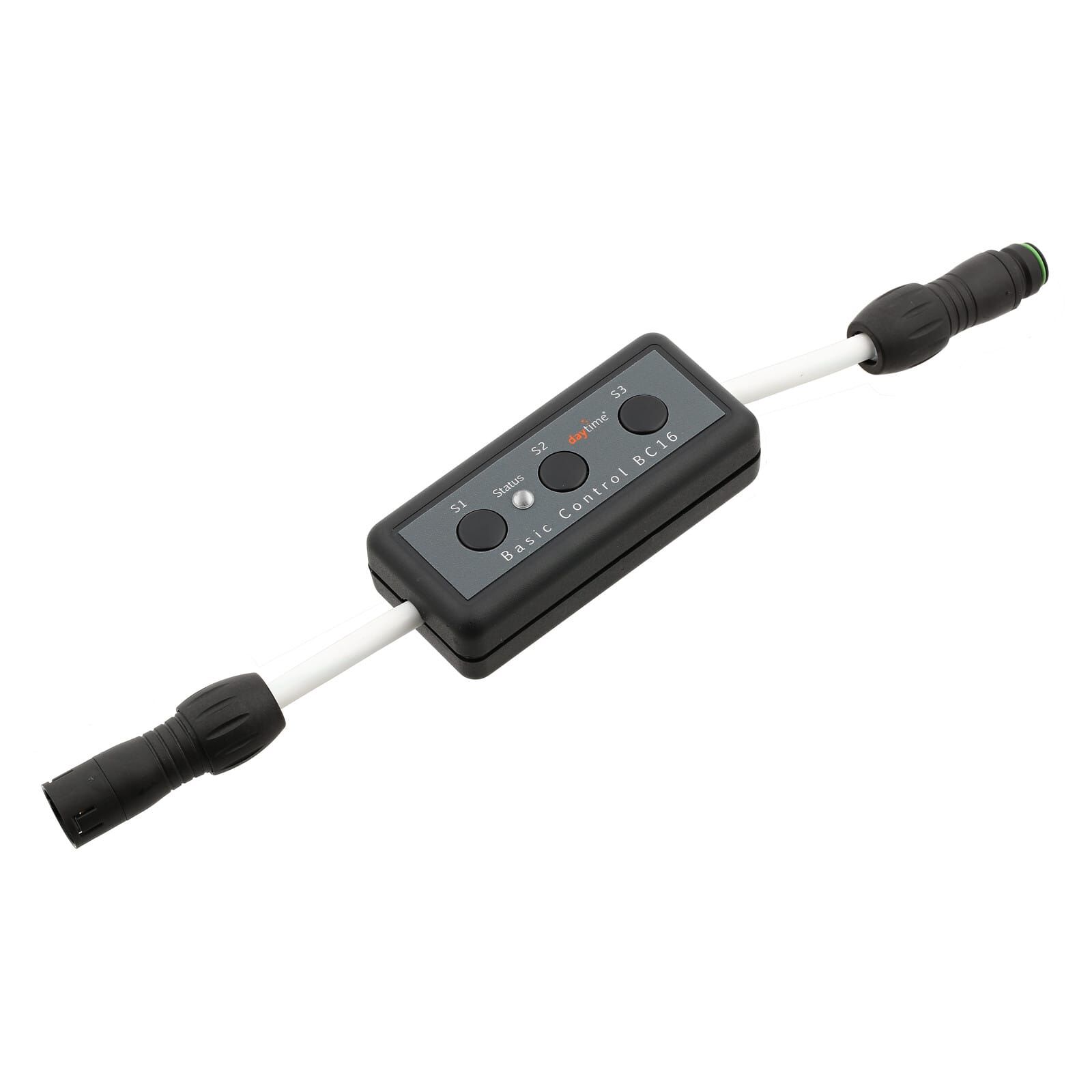

The Lightcontrol Basic Control BC16 is designed for daytime LED luminaires with a total output of up to 100W (for eco, cluster and eco Moon) or 240 watts (for matrix). It is able to switch between the daylight and the nightlight or dimmed evenly (sunrise / sunset). The brightness for the daylight or nightlight can be set and stored continuously. A pause time (light completely off) can be activated as required. If this function is deactivated, it is only switched between daylight and nightlight. When the pause time is active, everything is switched off at the set pause start time and the respective light is switched on according to the time at the end of the pause.
The BC16 also has a time-lapse function for demo or test purposes. This shows the adjusted or stored light program with shortened transition times in a period of 60 seconds. The internal clock has a "power reserve" and continues after approx. 15 minutes after switching off or failure of the power supply.
The setting / operation is carried out via 3 buttons (S1, S2 and S3). The status display is a 2-color LED (red / green).
- Control with attractive price / performance ratio
- Simulation of sunrise and sunset
- Nightlight separately adjustable
- Optional pause function
- With demo mode
