AQUARIO Neo Flow In-/Outflow Set Standard
- Shatterproof In-/Outflow Set made of PETG
- Compact Design
- Stays transparent constantly
- Available in two sizes
Sign in or Register
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description

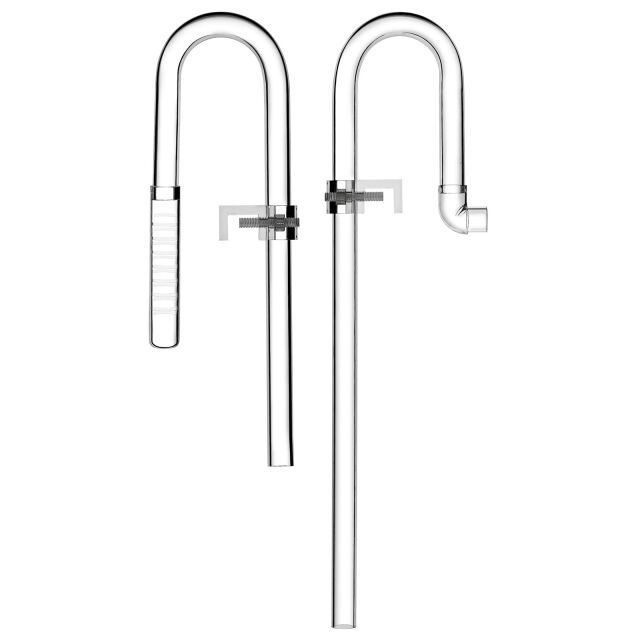

The AQUARIO Neo Flow In-/Outflow Set conveys aquarium water into the filter and back into the aquarium. It is made out of PETG (Polyethylene terephthalate modified with glycol), which - in the contratry to glass, regular plastic and stainless steel - is far more elastic.
Therefore, the Neo In- and Outflows are shatterproof and have a small bending radius.
In addition, PETG material provides a particularly high transparency. Before water contact, it seems matte, but as soon as it touches water, it becomes highly transparent.
Neo Flow Filter In- and Outflow
Due to the characteristics of the used PETG material, it is possible to cut the Neo Flow into the desired lenght by simply using a pipe cutter or small saw. Moreover, it is possible to rotate each part of the tubing by 360° and thus individualise the waterflow direction regarding the aquarium's needs.
Cleaning the Neo Flow is by far easier than cleaning stainless steel or glas in- and outflows because all the actual inflow and outflow parts are removable from the main tubes. Also, it is possible to clean the PETG with chlorine solution.
For cleaning, simply detach pipe and in-/outflow
Note
The Set ML contains a filter inflow with a 17 (16/22) mm diameter and an outflow with 13 (12/16) mm diameter.
In order to install the suitable filter guards Aquasabi Filter Guard Fine mesh, simply remove the last part of the filter inlet and attach the filter guard instead.
Attention:
For the optimal work of the skimmer V.2, the short side of the inlet is too short with its 8 cm, because the skimmer reaches a bit further into the water than the first version. To be able to use the V.2 skimmer without any reduction of power, the long side of the inlet is shortened to 11 cm. The pipe can then be hung in the pool with the shortened side and the V.2 skimmer. A simple saw can be used to shorten the pipe.
As you can see in the photo, the dimensions refer to the inner side of the pipe.
Features
- Stays transparent permanently
- Made out of PETG (Polyethylene terephthalate)
- Easily customised with pipe cutter or small saw
- Easy to clean
- Adjustable waterflow direction
- Suitable Filterguard: Aquasabi Filter Guard Fine mesh
Dimensions
Inflows
AQUARIO Neo Flow Set M Inflow - 13 mm | |
---|---|
Height | 228 mm |
Width | 70 mm |
Space between pipes | 41 mm |
Depth of immersion | 210 mm |
Outer diameter of the pipe | 13 mm |
Suitable hose | 12/16 mm |
Suitable filter guard | Aquasabi Filter Guard Fine mesh 13 mm |
AQUARIO Neo Flow Set L Inflow - 17 mm | |
---|---|
Height | 290 mm |
Width | 75 mm |
Space between pipes | 40 mm |
Depth of immersion | 277 mm |
Outer diameter of the pipe | 17 mm |
Suitable hose | 16/22 mm |
Suitable filter guard | Aquasabi Filter Guard Fine mesh 17 mm |
Outflows
AQUARIO Neo Flow Set M Outflow - 13 mm | |
---|---|
Height | 320 mm |
Width | 70 mm |
Space between pipes | 42 mm |
Depth of immersion | 35 mm |
Outer diameter of the pipe | 13 mm |
Suitable hose | 12/16 mm |
AQUARIO Neo Flow Set L Inflow - 17 mm | |
---|---|
Height | 388 mm |
Width | 75 mm |
Space between pipes | 42 mm |
Depth of immersion | 80 mm |
Outer diameter of the pipe | 17 mm |
Suitable hose | 16/22 mm |
Cleaning
When algae start forming on your PETG equipment or when larger and larger bubbles emerge from your ceramic diffusor it is time for cleaning. PETG-ware is easy to clean, however, it should be done diligently. After the cleaning process, your PETG products will be as good as new.
- You'll need a household bleach containing chlorine without perfumes. When working with chlorine bleach, please make sure you absolutely observe the manufacturer's safety notes.
- Pour some of the bleach into a container and mix with an equal amount of water. Mix so much of this solution that the PETG products you wish to clean are entirely covered
- Soak the PETG-ware in the solution for ½ - 1 hours (depending on the severity of the stains)
- Take it out and rinse thoroughly
- Now all the stains ought to be gone, and your PETG-ware should shine as if new
- Attention: Do not add vinegar to chlorine! Risk of death!
You'll find an extensive how-to (in German) with pictures in our Aquascaping Wiki under Glaswaren reinigen.
AQUARIO
The manufacturer AQUARIO specialises in high-quality acrylic CO2 diffusers, very efficient bio- CO2 systems and other useful accessories for aquaristics. The Korean brand, which has been in existence since 2010, follows the guiding principle of offering every aquarist the opportunity to create a near-natural aquascape with the help of its product range. Therefore, AQUARIO offers very elegant and discreet aquarium accessories that do not disturb the layout of an aquarium. Furthermore, they are constantly working on optimising their products as well as expanding the product range with new innovations. Since 2019, the product range is available all over the world.
General information
Item no. |
|
EAN | 8809702870964 |
Weight | 0,14 kg |
Shipping weight | 0,60 kg |
