daytime matrix

daytime matrix

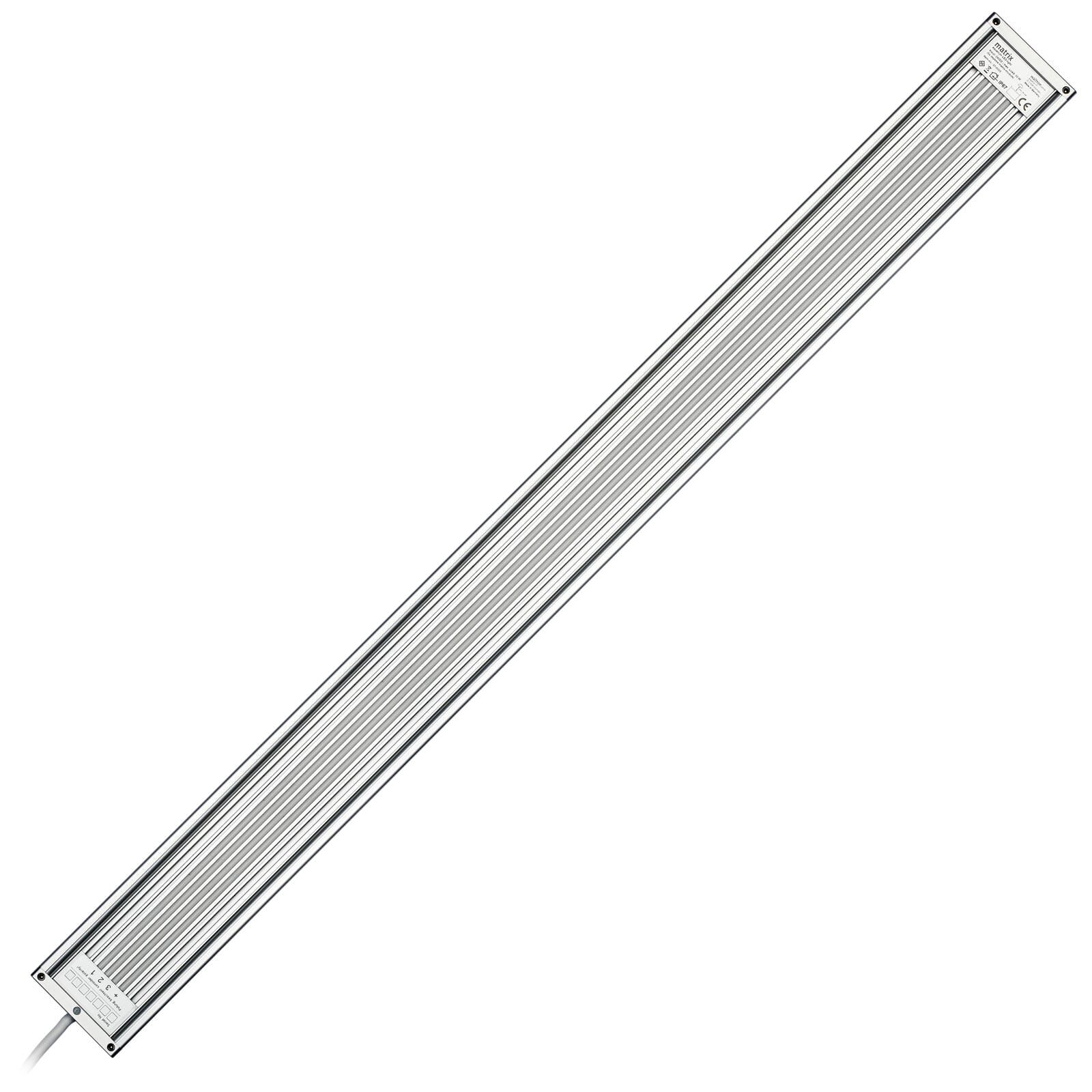

  • Aluminum profile with connection cable for converter
  • Supplied without LED modules!
  • Power supply (converter) has to be bought separately!
  • Dustproof and waterproof (IP67)
In stock, only 4 left
Free shipping on orders over € 60,- within Germany Change region
1-3 business days - order within the next 11 hours and 54 minutes and we’ll deliver tomorrow at the earliest
I want to order to
confirm
€
179.-
incl. VAT
free Shipping
Quantity:
Item is now in your shopping cart!
View my cart

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

The daytime matrix series sets new standards by combining variability, functionality and aesthetics — just as unique as your own tank!
Provide your tank’s inhabitants with long-term, habitat-appropriate lighting using modern, innovative and high-quality LED lights. In addition to the high, spot-like light intensity (up to 1,800 lumens per cluster module surface of 52×52 mm), the clusters create natural light reflections, ripple and shadow effects in the tank. You will be delighted by the nearly limitless variability!

The sturdy aluminium profile is highly resistant thanks to its anodised surface — even in harsh saltwater environments.

The sophisticated setup combines a timeless design with optimal heat regulation. Due to the relatively large surface area, heat dissipation is excellent and enables a prolonged service life of well over 50,000 hours without any significant loss of light output. The centrepiece of this lamp is the latest LED technology from market leader SEOUL SEMICONDUCTOR (SSC).

In the white-light range, this LED achieves an efficiency of up to 230 lm/W and a colour rendering index (CRI) of over 90. This saves up to 50% energy compared to conventional lights while simultaneously increasing brilliance.

Particularly noteworthy is the contacting of the LED modules, which was specially developed for the matrix series. It enables arbitrary placement of the modules. You can conveniently mount the modules yourself into the LED profile. For particularly light-hungry plant groups, you can, for example, choose a dense arrangement. A subsequent upgrade or conversion of a matrix is also possible.

By means of the daytime BC16, the daytime matrix can be controlled and dimmed steplessly. This makes daytime sequences, sunrises and sunsets and even pause times possible.

All important information at a glance: Daytime – Information Flyer

daytime matrix lights in larger sizes are available individually on request. For an offer, please send us an email at yoohoo@aquasabi.com.

If you have any questions about the configuration, we’ll be happy to help via email. We can advise you or put together a completely customised daytime LED lighting system.

Manual matrix - - download PDF

Safety instructions daytime matrix, pendix, onex, cobra, kingcobra - - download PDF

Features

  • Supplied without LED modules — these must be ordered separately
  • Easy self-installation of the modules — also retrospectively
  • Universal adaptor is already integrated into the profile (extendable)
  • Several other adaptors are also available
  • Special adaptor profiles for covers by EHEIM and JUWEL
  • 24 V converter is additionally required in any case
  • Up to 230 lumens per watt
  • Sturdy, slim aluminium profile with excellent heat regulation
  • Anodised layer for highest durability
  • Incl. splash guard — maximises cleaning comfort (can be removed for cleaning)
  • GORE membrane ensures constant conditions inside the lamp (pressure equalisation and moisture protection)
  • LED technology from a market leader (SEOUL SEMICONDUCTOR)
  • Very good colour rendering up to CRI 90
  • 120° beam angle
  • Position-independent, modular construction of the LED modules
  • LED lifespan approx. 60,000 hours
  • Dust- and waterproof (IP67)

Usage

Profile Max. possible modules
matrix 20.0 1 module
matrix 30.0 1 module
matrix 40.0 2 modules
matrix 50.0 3 modules
matrix 60.0 4 modules
matrix 70.0 5 modules
matrix 80.0 6 modules
matrix 90.0 7 modules
matrix 100.0 8 modules
matrix 110.0 9 modules
matrix 120.0 10 modules
matrix 130.0 11 modules
matrix 140.0 12 modules
matrix 150.0 13 modules
matrix 160.0 14 modules
matrix 170.0 15 modules
matrix 180.0 16 modules
matrix 190.0 17 modules
matrix 200.0 18 modules

Dimensions

daytime matrix 20.0
Profile length without adaptors 166 mm
Suitable for aquariums
with universal adaptor (included) 200 – 300 mm
with Swing adaptor 200 – 300 mm
with Insertion/Bolt-on adaptor 230 – 300 mm
daytime matrix 30.0
Profile length without adaptors 250 mm
Suitable for aquariums
with universal adaptor (included) 280 – 384 mm
with Swing adaptor 250 – 384 mm
with Insertion/Bolt-on adaptor 280 – 384 mm
daytime matrix 40.0
Profile length without adaptors 350 mm
Suitable for aquariums
with universal adaptor (included) 380 – 484 mm
with Swing adaptor 350 – 484 mm
with Insertion/Bolt-on adaptor 380 – 484 mm
daytime matrix 50.0
Profile length without adaptors 450 mm
Suitable for aquariums
with universal adaptor (included) 480 – 584 mm
with Swing adaptor 450 – 584 mm
with Insertion/Bolt-on adaptor 480 – 584 mm
with T5 adaptor 438 mm / 24 W
with T8 adaptor 438 mm / 15 W
daytime matrix 60.0
Profile length without adaptors 550 mm
Suitable for aquariums
with universal adaptor (included) 580 – 684 mm
with Swing adaptor 550 – 684 mm
with Insertion/Bolt-on adaptor 580 – 684 mm
with T5 adaptor 517 mm / 13 W
daytime matrix 70.0
Profile length without adaptors 650 mm
Suitable for aquariums
with universal adaptor (included) 680 – 784 mm
with Swing adaptor 650 – 784 mm
with Insertion/Bolt-on adaptor 680 – 784 mm
with T5 adaptor 549 mm / 24 & 28 W
with T8 adaptor 590 mm / 18 W
daytime matrix 80.0
Profile length without adaptors 750 mm
Suitable for aquariums
with universal adaptor (included) 780 – 884 mm
with Swing adaptor 750 – 884 mm
with Insertion/Bolt-on adaptor 750 – 884 mm
with T5 adaptor 742 mm / 35 W
with T8 adaptor 742 mm / 25 W
daytime matrix 90.0
Profile length without adaptors 850 mm
Suitable for aquariums
with universal adaptor (included) 880 – 984 mm
with Swing adaptor 850 – 984 mm
with Insertion/Bolt-on adaptor 880 – 984 mm
with T5 adaptor 849 mm / 39 & 45 W
with T8 adaptor 895 mm / 30 W
daytime matrix 100.0
Profile length without adaptors 950 mm
Suitable for aquariums
with universal adaptor (included) 980 – 1,084 mm
with Swing adaptor 950 – 1,084 mm
with Insertion/Bolt-on adaptor 980 – 1,084 mm
daytime matrix 110.0
Profile length without adaptors 1,050 mm
Suitable for aquariums
with universal adaptor (included) 1,080 – 1,184 mm
with Swing adaptor 1,050 – 1,184 mm
with Insertion/Bolt-on adaptor 1,080 – 1,184 mm
with T5 adaptor 1,047 mm / 54 W
with T8 adaptor 1,047 mm / 38 W
daytime matrix 120.0
Profile length without adaptors 1,150 mm
Suitable for aquariums
with universal adaptor (included) 1,180 – 1,284 mm
with Swing adaptor 1,150 – 1,284 mm
with Insertion/Bolt-on adaptor 1,180 – 1,284 mm
with T5 adaptor 1,149 mm / 54 W
daytime matrix 130.0
Profile length without adaptors 1,250 mm
Suitable for aquariums
with universal adaptor (included) 1,280 – 1,384 mm
with Swing adaptor 1,250 – 1,384 mm
with Insertion/Bolt-on adaptor 1,280 – 1,384 mm
with T5 adaptor 1,200 mm / 54 W
with T8 adaptor 1,200 mm / 36 W
daytime matrix 140.0
Profile length without adaptors 1,350 mm
Suitable for aquariums
with universal adaptor (included) 1,380 – 1,484 mm
with Swing adaptor 1,350 – 1,484 mm
with Insertion/Bolt-on adaptor 1,380 – 1,484 mm
daytime matrix 150.0
Profile length without adaptors 1,450 mm
Suitable for aquariums
with universal adaptor (included) 1,480 – 1,584 mm
with Swing adaptor 1,450 – 1,584 mm
with Insertion/Bolt-on adaptor 1,480 – 1,584 mm
with T5 adaptor 1,449 mm / 80 W
with T8 adaptor 1,500 mm / 58 W
daytime matrix 160.0
Profile length without adaptors 1,550 mm
Suitable for aquariums
with universal adaptor (included) 1,580 – 1,684 mm
with Swing adaptor 1,550 – 1,684 mm
with Insertion/Bolt-on adaptor 1,580 – 1,684 mm
with Acrylic adaptor 1,560 – 1,720 mm
daytime matrix 170.0
Profile length without adaptors 1,650 mm
Suitable for aquariums
with universal adaptor (included) 1,680 – 1,784 mm
with Swing adaptor 1,650 – 1,784 mm
with Insertion/Bolt-on adaptor 1,680 – 1,784 mm
with Acrylic adaptor 1,660 – 1,820 mm
daytime matrix 180.0
Profile length without adaptors 1,750 mm
Suitable for aquariums
with universal adaptor (included) 1,780 – 1,884 mm
with Swing adaptor 1,750 – 1,884 mm
with Insertion/Bolt-on adaptor 1,780 – 1,884 mm
with Acrylic adaptor 1,760 – 1,920 mm
daytime matrix 190.0
Profile length without adaptors 1,850 mm
Suitable for aquariums
with universal adaptor (included) 1,880 – 1,984 mm
with Swing adaptor 1,850 – 1,984 mm
with Insertion/Bolt-on adaptor 1,880 – 1,984 mm
with Acrylic adaptor 1,860 – 2,020 mm
daytime matrix 200.0
Profile length without adaptors 1,950 mm
Suitable for aquariums
with universal adaptor (included) 1,980 – 2,084 mm
with Swing adaptor 1,950 – 2,084 mm
with Insertion/Bolt-on adaptor 1,980 – 2,084 mm
with Acrylic adaptor 1,960 – 2,120 mm

Other adaptors — for example a cable suspension for up to three LED profiles — are also available.

There are special adaptor profiles for covers by Eheim, which allow very simple conversion.

Product Safety Notes

Handling notes:

  • Before commissioning: refer to the included safety instructions.

daytime

daytime

Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
