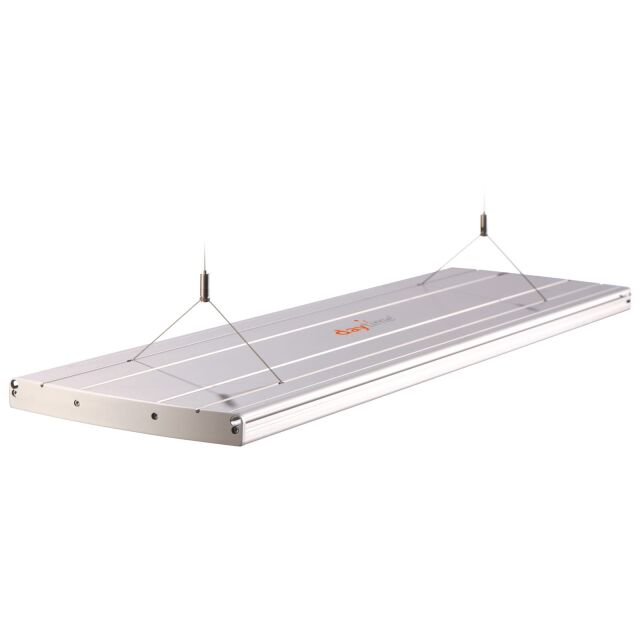

daytime pendix
- Based on the tried-and-tested matrix technology
- Ultra flat design
- Three rails for more modules, more power!
- Available in silver
- LED modules and power units have to be bought separately!
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
The modular and energy - efficient pendix LED aquarium lighting from daytime is very appealing over any aquarium tank. Based on their well-known and established modular system, the pendix differs from the popular and proven daytime matrix mainly by a flat panel design, virtually floating above the tank. In contrast to the module supports of the matrix series, the pendix support system is significantly wider and thus enables a more generous module configuration and therefore more light output above the aquarium. The pendix carrier system contains three module rails which can be equipped with the well-known high-power LEDs of the matrix series.
Thanks to adapter sets, the light can also be used as a surface-mounted light or for fixed wall mounting.
By means of the daytime BC16 daytime pendix can be controlled and dimmed. This makes daytime sequences, sunrises and sunsets and even break times possible.
All important information compactly summarized: Daytime - Info Flyer (German only).
daytime - pendix lights in larger sizes are available individually on request. For an offer, please send us an email to yoohoo@aquasabi.com
If there are any questions about the configuration, we will be happy to help via mail. We will be happy to advise or put together a completely customised daytime LED lighting system.
Features
- LED-modules sold seperately
- Installation of the modules can be done by the user almost effortlessly
- Proven, free positionable, modular design of individual LED elements
- Available from us up to a length of 200cm
- Fanless passive cooling and 20% increased heat dissipation through lateral guide surfaces
- All-aluminium components, anodised and seawater-resistant according to DIN81249-1
- With integrated grooves for cable suspensions and screw channels for wall mounting
- Easy to clean, removable splash guards included
- Market leader technology (SEOUL SEMICONDUCTOR)
- Splendid colour rendering up to CRI 90
- 120° emission angle
- SEOUL SEMICONDUCTOR SMD-LED 5630 up to 230 Lumen/Watt
- Dust- and water-proof (IP67)
Application
profile | maximum number of modules |
---|---|
pendix 40.0 | 9 modules |
pendix 50.0 | 12 modules |
pendix 60.0 | 15 modules |
pendix 70.0 | 18 modules |
pendix 80.0 | 24 modules |
pendix 90.0 | 24 modules |
pendix 100.0 | 24 modules |
pendix 110.0 | 24 modules |
pendix 120.0 | 24 modules |
pendix 130.0 | 24 modules |
pendix 140.0 | 24 modules |
pendix 150.0 | 24 modules |
pendix 160.0 | 24 modules |
pendix 170.0 | 24 modules |
pendix 180.0 | 24 modules |
pendix 190.0 | 24 modules |
pendix 200.0 | 24 modules |
Dimensions
daytime pendix 40.0 | |
---|---|
Profile length | 400 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 550 - 650 mm |
Suitable for aquarium volume | bis 550 l |
daytime pendix 50.0 | |
---|---|
Profile length | 500 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 650 - 750 mm |
Suitable for aquarium volume | bis 860 l |
daytime pendix 60.0 | |
---|---|
Profile length | 600 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 750 - 850 mm |
Suitable for aquarium volume | bis 1.050 l |
daytime pendix 70.0 | |
---|---|
Profile length | 700 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 850 - 950 mm |
Suitable for aquarium volume | bis 1.250 l |
daytime pendix 80.0 | |
---|---|
Profile length | 800 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 950 - 1.050 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 90.0 | |
---|---|
Profile length | 900 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1.100 - 1.150 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 100.0 | |
---|---|
Profile length | 1.000 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1.150 - 1250 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 110.0 | |
---|---|
Profile length | 1.100 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1.250 - 1350 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime daytime pendix 120.0 | |
---|---|
Profile length | 1.200 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1350 - 1.450 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 130.0 | |
---|---|
Profile length | 1.300 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1.450 - 1.550 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 140.0 | |
---|---|
Profile length | 1.400 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1.550 - 1.650 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 150.0 | |
---|---|
Profile length | 1.500 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1.650 - 1.750 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 160.0 | |
---|---|
Profile length | 1.600 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1.750 - 1.850 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 170.0 | |
---|---|
Profile length | 1.700 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1.850 - 1.950 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 180.0 | |
---|---|
Profile length | 1.800 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 1.950 - 2.050 mm |
Suitable for aquarium volume | bis 1.700 l |
daytime pendix 190.0 | |
---|---|
Profile length | 1.900 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 2.050 - 2.150 mm |
Suitable for aquarium volume | 1.700 l |
daytime pendix 200.0 | |
---|---|
Profile length | 2.000 mm |
Width | 219 mm |
Height | 25 mm |
Suitable for aquarium length | 2.150 - 2.250 mm |
Suitable for aquarium volume | 1.700 l |
Adapters, for example for suspending one or even more LED profiles, are also available.
daytime
Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
General information
Item no. |
|
EAN | 4260565173946 |
Weight | 7,02 kg |
Shipping weight | 7,40 kg |
