daytime backlight JU
- High-quality backlight
- Exact fit for JUWEL
- Compatible to Lido, Rio & Vision
- Easy installation
- Extensive scope of delivery
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
The daytime backlight for Juwel aquariums is a modern and high-quality LED backlight for retrofitting to Juwel complete aquariums. Backlighting gives the plants, the layout and the inhabitants in the aquarium a very three-dimensional appearance, as shadows are almost completely eliminated by the diffuse, large-area light. The enhanced optical three-dimensionality makes fine details more visible and colours of aquatic plants and aquarium inhabitants appear more vibrant. Aquarium plants benefit particularly from the additional light source and respond to the supplementary light with splendid colours and growth. These daytime backlights are specially designed for Juwel aquariums and are suitable for the Lido, Rio and Vision series.
The installation on the aquarium is realised with the polycarbonate retaining clips included in the scope of delivery. The frame of the panel has a circumferential aluminium rib, which makes installation very easy. The clips are inserted on the right and left between the glass and the gravel screen of the aquarium, the backlight Panel is then placed on the clips and snapped into place. The spring tension of the clips keeps the daytime backlight in position.
Easy instalation
As an alternative to the blue to white gradient plate included in the scope of delivery, the daytime backlight Panel Opal White can be used.
Features
- Perfect fit due to precise manufacturing, made in Germany
- Tool-free assembly due to supplied accessories
- Sturdy, anodised aluminium frame
- Creates a very attractive plasticity in the aquarium
- Seperate available Dimmer enhances features
- An optional Mounting bracket set is available for attachment to the base unit

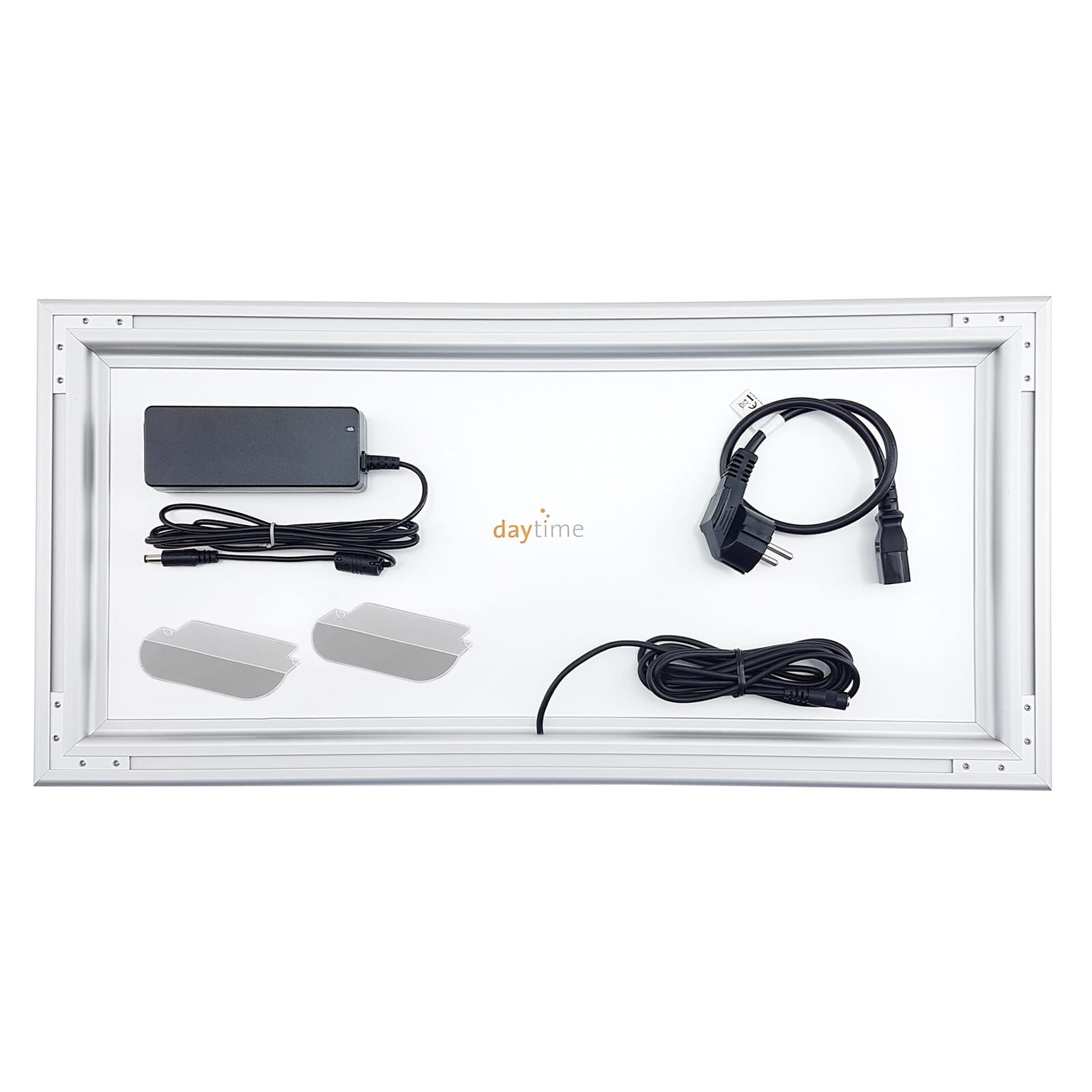

- daytime backlights are supplied with a power supply unit and brackets to suit the aquarium in question.
- Variants for EHEIM aquariums as well as open aquaria are also available
Technical data
Powerconsumption | Luminous flux in Lumen | Colourtemperatur in Kelvin | |
---|---|---|---|
daytime backlight for Juwel - Lido 120 | 23 W | 2.245 | 6.500 |
daytime backlight for Juwel - Lido 200 | 27 W | 2.646 | 6.500 |
daytime backlight for Juwel - Rio 125 | 31 W | 3.038 | 6.500 |
daytime backlight for Juwel - Rio 180 | 38 W | 3.724 | 6.500 |
daytime backlight for Juwel - Rio 240 | 46 W | 4.508 | 6.500 |
daytime backlight forr Juwel - Rio 350 | 46 W | 4.508 | 6.500 |
daytime backlight for Juwel - Rio 450 | 58 W | 5.684 | 6.500 |
daytime backlight for Juwel - Vision 180 | 35 W | 3.430 | 6.500 | daytime backlight for Juwel - Vision 260 | 46 W | 4.508 | 6.500 |
daytime backlight for Juwel - Vision 450 | 58 W | 5.684 | 6.500 |
Dimensions
Width in mm | Height in mm | Depth in mm | |
---|---|---|---|
daytime backlight for Juwel - Lido 120 | 598 | 458 | 22 |
daytime backlight for Juwel - Lido 200 | 698 | 523 | 22 |
daytime backlight for Juwel - Rio 125 | 798 | 386 | 22 |
daytime backlight for Juwel - Rio 180 | 998 | 381 | 22 |
daytime backlight for Juwel - Rio 240 | 1.198 | 425 | 22 |
daytime backlight forr Juwel - Rio 350 | 1.198 | 518 | 22 |
daytime backlight for Juwel - Rio 450 | 1498 | 543 | 22 |
daytime backlight for Juwel - Vision 180 | 913 | 421 | 22 | daytime backlight for Juwel - Vision 260 | 1198 | 507 | 22 |
daytime backlight for Juwel - Vision 450 | 1.498 | 498 | 22 |
Product Safety Notes
Signal word: Attention
Handling Notes:
- Before commissioning: Refer to the included safety instructions.
daytime
Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
General information
Item no. |
|
EAN | 4260671514213 |
Weight | 5,70 kg |
Shipping weight | 7,00 kg |
