Description

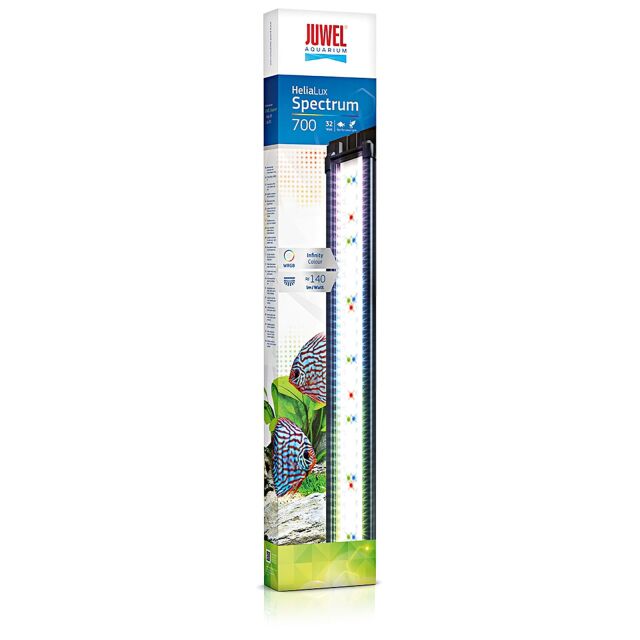

The Juwel HeliaLux LED Spectrum is a waterproof full-spectrum LED light for an optimal lighting pattern.
With its specially developed LEDs, the HeliaLux LED Spectrum provides excellent illumination of the aquarium and supports the growth of the plants in the best possible way.
The colours in the aquarium are reproduced in their full diversity thanks to the LED combination, white LEDs and red, green and blue LEDs.
With the separately available HeliaLux LED SmartControl, it is possible to control the colour channels individually and to programme individual daily sequences.
In addition, HeliaLux LED UniversalFit is available for all LED luminaires, enabling the HeliaLux to be combined with other aquariums.
Manual for HeliaLux LED Spectrum / HeliaLux LED Daylight - -
Features
- Full spectrum LEDs for best possible colour rendering
- Combination of 9.000 K and 6.500 K LEDs
- Supports healthy plant growth
- Special housing allows optimised heat dissipation
- Scratch-resistant safety glass for permanently consistent light quality
- Extended use to other aquariums with the HeliaLux LED UniversalFit mount
- Controllable with HeliaLux LED SmartControl
Technical Data
| Juwel HeliaLux LED Spectrum 550 | |
|---|---|
| Power consumption | 27 W |
| Luminous flux | approx. 3.780 Lumen (applies to the white LEDs) |
| Juwel HeliaLux LED Spectrum 600 | |
|---|---|
| Power consumption | 29 W |
| Luminous flux | approx. 4.060 Lumen (applies to the white LEDs) |
| Juwel HeliaLux LED Spectrum 700 | |
|---|---|
| Power consumption | 32 W |
| Luminous flux | approx. 4.480 Lumen (applies to the white LEDs) |
| Juwel HeliaLux LED Spectrum 800 | |
|---|---|
| Power consumption | 32 W |
| Luminous flux | approx. 4.480 Lumen (applies to the white LEDs) |
| Juwel HeliaLux LED Spectrum 920 | |
|---|---|
| Power consumption | 40 W |
| Luminous flux | approx. 5.600 Lumen (applies to the white LEDs) |
| Juwel HeliaLux LED Spectrum 1.000 | |
|---|---|
| Power consumption | 48 W |
| Luminous flux | approx. 6.720 Lumen (applies to the white LEDs) |
| Juwel HeliaLux LED Spectrum 1.200 | |
|---|---|
| Power consumption | 60 W |
| Luminous flux | approx. 8.400 Lumen (applies to the white LEDs) |
| Juwel HeliaLux LED Spectrum 1.500 | |
|---|---|
| Power consumption | 60 W |
| Luminous flux | approx. 8.400 Lumen (applies to the white LEDs) |
Dimensions
| Juwel HeliaLux LED Spectrum 550 | |
|---|---|
| Length | 534 mm |
| Width | 90 mm |
| Height | 40 mm |
| Suitable for Juwel aquarium | Trigon 350 |
| Juwel HeliaLux LED Spectrum 600 | |
|---|---|
| Length | 593 mm |
| Width | 90 mm |
| Height | 40 mm |
| Suitable for Juwel aquarium | Lido 120 |
| Juwel HeliaLux LED Spectrum 700 | |
|---|---|
| Length | 693 mm |
| Width | 90 mm |
| Height | 40 mm |
| Suitable for Juwel aquarium | Trigon 190, Lido 200 |
| Juwel HeliaLux LED Spectrum 800 | |
|---|---|
| Length | 793 mm |
| Width | 90 mm |
| Height | 40 mm |
| Suitable for Juwel aquarium | Rio 125 |
| Juwel HeliaLux LED Spectrum 920 | |
|---|---|
| Length | 903 mm |
| Width | 90 mm |
| Height | 40 mm |
| Suitable for Juwel aquarium | Vision 180 |
| Juwel HeliaLux LED Spectrum 1.000 | |
|---|---|
| Length | 993 mm |
| Width | 90 mm |
| Height | 40 mm |
| Suitable for Juwel aquarium | Rio 180, Trigon 350 |
| Juwel HeliaLux LED Spectrum 1.200 | ||
|---|---|---|
| Length | 1.192 mm | |
| Width | 90 mm | |
| Height | 40 mm | |
| Suitable for Juwel aquarium | Rio 240, Rio 300/350, Vision 260 | |
| Juwel HeliaLux LED Spectrum 1.500 | |
|---|---|
| Length | 1.492 mm |
| Width | 90 mm |
| Height | 40 mm |
| Suitable for Juwel aquarium | Rio 400/450, Vision 450 |
Warranty
2-year warranty
Juwel guarantees the performance of their products for the duration of two years, given that the purchasing person is also the consumer. The legal defect rights towards Aquasabi GmbH & Co. KG according to §§ 437 ff. BGB (German Civil Code) are not compromised by this warranty. The exact content of the warranty and all important declarations that regard its enforcement can be read in here in detail.
Extract from the warranty policy by
Extend:
"(1) This guarantee extends to the JUWEL-Aquarium product and its components excluding items subject to wear and tear such as T5 & T8 light tubes and filter media. It is limited to the product as such and does not cover damage to other property and/or individuals. In addition, the provisions of the product liability law apply. These provisions are not limited by the aforementioned arrangement. [...]"
Terms:
"[...] (3) Guarantee claims will only be accepted if the validity of the claim is supported by evidence of purchase of the JUWEL-Aquarium product. This declaration of guarantee is a translation only. In case of doubts the original German language version prevails. [...]"
Source: https://www.juwel-aquarium.de/en/Warranty-declaration/, last viewed 28.06.2021
