EHEIM universal
- excellent properties in long-term use
- Usable inside and outside the water
- Different connection and mounting options
- Available in different power levels
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description

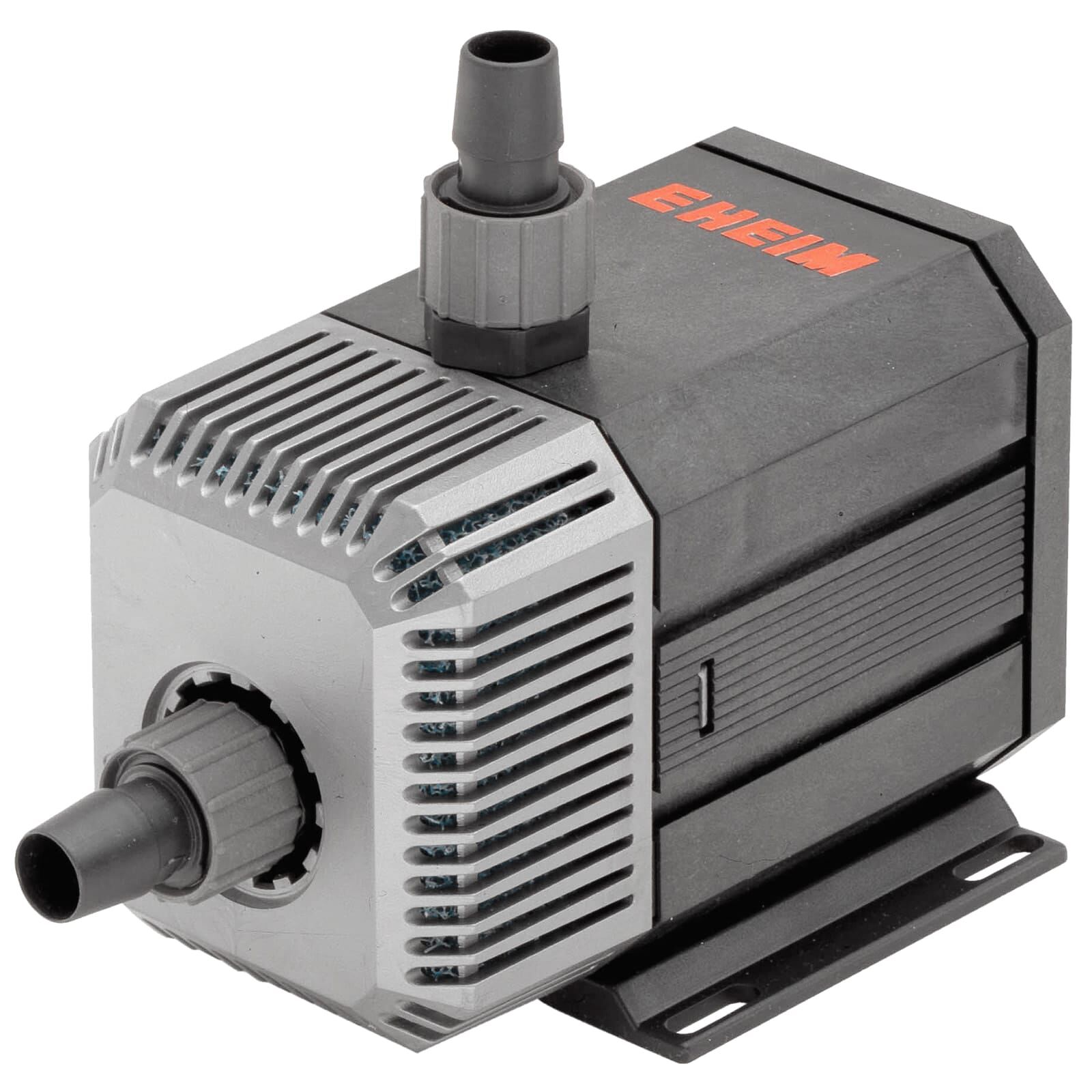

EHEIM universal pumps are convincing due to their numerous application possibilities, especially through their usability inside and outside the water. The integrated pre-filter provides optimum protection for the impeller and thus enables a long service life of the pumps. Different connection and mounting options additionally allow a high degree of flexibility and are also used in the professional field.
The EHEIM universal pumps are available in 5 different power levels of 300, 600, 1200, 2400 and 3400 liters per hour.
Features
- excellent properties in long-term use
- very powerful
- Usable inside and outside the water
- flexible mounting options (mounting plate included)
- secure hose connection through suction nozzle
- Air and watertight motor body for the highest level of safety
- Cable length: 1,7 m
Technical data
EHEIM universal 300 | |
---|---|
Flow rate | 300 Litres per hour |
Pump delivery head | 1,20 m |
Power consumption | 5 Watt |
Dimensions | 146 x 103 x 75 mm |
Hose dimensions | 9/11 or 10 mm (discharge side) and 12/16 or 13mm (suction side) |
EHEIM universal 600 | |
---|---|
Flow rate | 600 Litres per hour |
Pump delivery head | 1,50 m |
Power consumption | 10 Watt |
Dimensions | 147 x 115 x 75 mm |
Hose dimensions | 12/16 or 13mm |
EHEIM universal 1200 | |
---|---|
Flow rate | 1200 Litres per hour |
Pump delivery head | 2,00 m |
Power consumption | 28 Watt |
Dimensions | 178 x 121 x 96 mm |
Hose dimensions | 12/16 or 13 mm (discharge side) and 16/22 or 17mm (suction side) |
EHEIM universal 2400 | |
---|---|
Flow rate | 2400 Liter pro Stunde |
Pump delivery head | 3,70 m |
Power consumption | 65 Watt |
Dimensions | 218 x 161 x 116 mm |
Hose dimensions | 16/22 or 17 mm (discharge side) and 25/34 or 28mm (suction side) |
EHEIM universal 3400 | |
---|---|
Flow rate | 3400 Liter pro Stunde |
Pump delivery head | 3,60 m |
Power consumption | 80 Watt |
Dimensions | 218 x 161 x 116 mm |
Hose dimensions | 16/22 or 17 mm (discharge side) and 25/34 or 28 mm (suction side) |
Product safety
Caution: Electricity hazard
Warning notes:
- Do not allow the device packaging or small parts to come into the hands of children or persons unaware of their actions, as this may pose hazards (risk of suffocation!). Keep the product away from animals.
- This device may be used by children aged 3 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge, if you supervise or instruct them and they understand the risks involved. Children must not play with the device. Cleaning and maintenance must not be carried out by children unless supervised.
- This device must not be used by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless supervised or instructed by a responsible person. Children must be supervised to ensure they do not play with the device.
- This device contains a magnet with a strong magnetic field that can affect pacemakers or implanted defibrillators (ICD). Keep a minimum distance of 30?cm between the implant and the magnet.
- The device must be protected by a residual current device (RCD) with a rated residual current not exceeding 30?mA. If in doubt, consult a qualified electrician.
- Immediately disconnect all devices in the aquarium from the power supply in the event of water leakage or if the RCD trips.
- Always disconnect all devices in the aquarium from the power supply when not in use, before installing or removing parts, and before any cleaning or maintenance.
- Protect sockets and plugs from moisture. Form a drip loop with the power cable to prevent water running along the cable into the socket and causing a short circuit.
- The electrical specifications of the device must match the specifications of the mains power supply. These can be found on the nameplate, packaging or in the instructions.
- Use the device outdoors only if it is suitable for outdoor use.
- Use only splash-proof extension cords and power distributors for outdoor use.
- Power cables must have at least the same cross-section as rubber-insulated cables marked H05RN-F3G 0.75. Extension cords must comply with DIN VDE 0620 requirements.
- Connect the device only to a properly installed grounded socket outlet.
- Protect the power cable from heat, oil and sharp edges. Do not step on the cable if it is laid in soil or gravel without a conduit.
- Operate the device only when no persons are in the water.
Handling notes:
- Perform a visual inspection before use to ensure the device, especially the power cable and plug, is undamaged.
- Repairs must only be carried out by an EHEIM service centre.
- The power cord of this device cannot be replaced. If damaged, the device must be discarded.
- Only perform tasks described in the instructions.
- Use only original spare parts and accessories for the device.
EHEIM

EHEIM stands for high-quality aquarium filters, manufactured in Germany. The product range includes external and internal filters as well as filter pumps, suitable for both planted aquariums and aquascapes. EHEIM places great emphasis on the highest quality standards and technical innovations. These features have made EHEIM a well-known name in the field of aquatics. Many people involved in aquarium keeping appreciate the reliability and durability of the products, which consistently ensure optimal water quality. Thanks to these qualities, EHEIM has been considered a reliable partner for efficient aquarium technology for many years.
Manufacturer information
Manufacturer | |
---|---|
Name | EHEIM GmbH & Co. KG |
Street | Plochinger Str. 54 |
City | 73779 Deizisau |
State | Baden-Württemberg |
Country | Deutschland |
info@eheim.com | |
Website | eheim.com/de_DE |
General information
Item no. |
|
EAN | 4011708103166 |
Weight | 0,97 kg |
Shipping weight | 1,10 kg |
