daytime onex fresh
- LED lamp for closed & open tanks
- High luminous flux density
- Fullspektrum LEDs
- Delicate design
- Extensive accessories available
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description

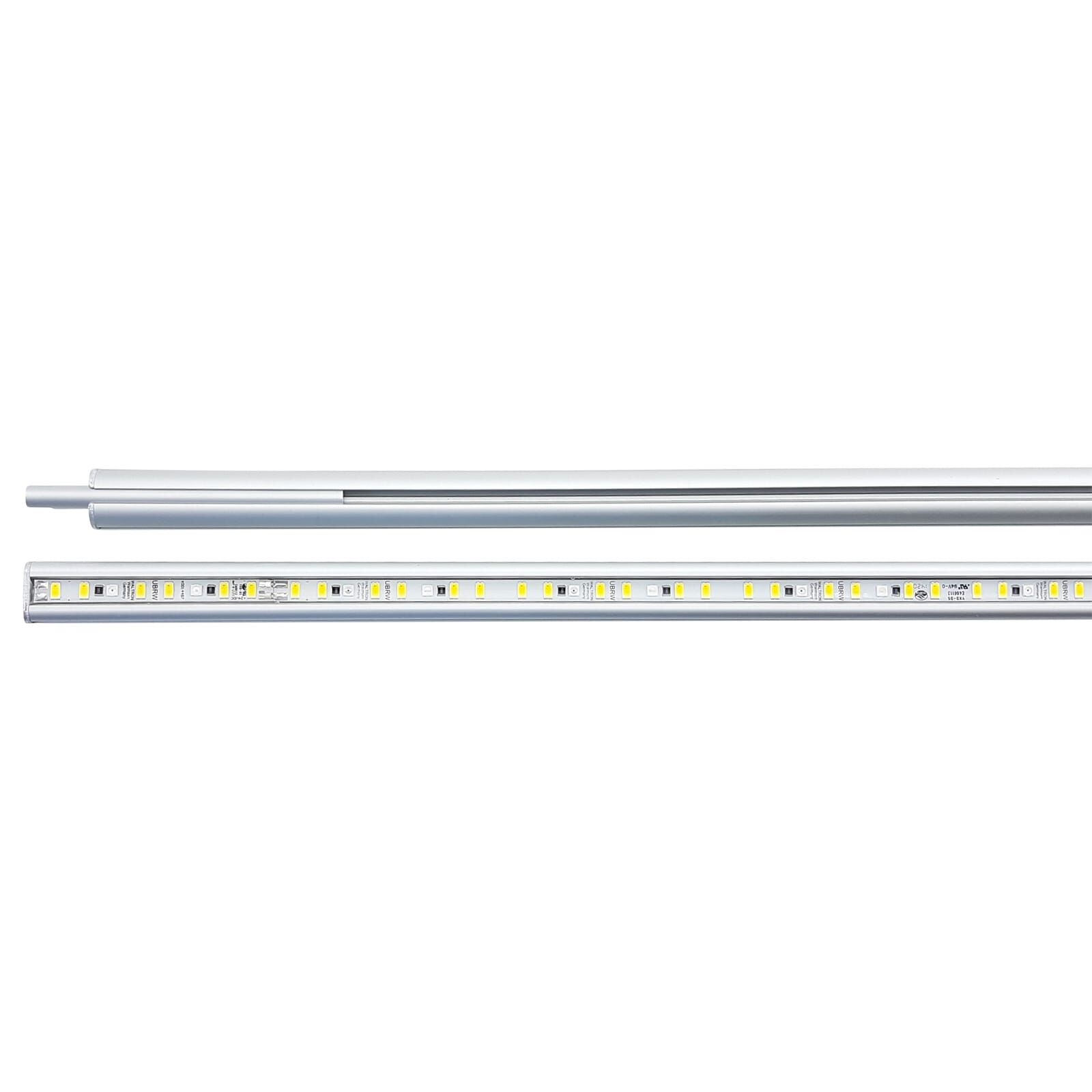

The daytime onex fresh LED system offers modern LED aquarium luminaires especially for closed aquariums.
The cool colour temperature of 6.000 to 7.000 Kelvin creates a high-contrast look with clear shapes, an open and fresh atmosphere with sharp contours.
The green tones of the aquascapes are particularly emphasised, making the fresh version very suitable for a plant-rich aquarium.
The daytime onex fresh series is a first-class symbiosis of extremely high light quality and luminous flux in a compact and filigree design.
Spectrum daytime onex fresh
Thanks to the extremely high-quality full spectrum white light LEDs and sophisticated design, an output of 864 to 10.800 lumens can be achieved. The photosynthetically active radiation between 380 and 780 nm (PAR value), achieves optimal values for healthy plant growth and strong colours.
The daytime onex is also available in the variations color with 4.000 to 5.000 Kelvin and a red and blue light emphasis, for a warm, soft look. In addition, daytime offers a plant version, with warm light and no emphasis on the red and blue light spectrum with 4.000 to 5.000 Kelvin, achieving a neutral yet organic look.
By means of the daytime BC16, the daytime onex fresh can be controlled and dimmed continuously. In this way, daytime sequences, sunrises and sunsets, and even pauses are possible.
Each daytime onex can be adapted to almost any situation by means of the extensive range of accessories available.
A power supply unit is not included in the scope of delivery.
Features
- Available in 19 standard lengths
- Ideal for aquarium lengths between 200.0 and 2000.0 mm
- Three different types available
- Waterproof
- Integrated inline telescope supports made of solid aluminium
- daytime LED-Converter 24V available in desired version
- Optional acrylic-adapter set extends flexibility
- Acrylic nano adapter set
- Accessories for the operation of 2 onex lamps: daytime distributor two-way
- The daytime onex wire suspension set enables usage as pendant light
- Made in Germany
Technical Data
daytime onex fresh - 20 | |
---|---|
Input | 4,8 W |
Luminous flux | 864 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 30 | |
---|---|
Input | 7,2 W |
Luminous flux | 1.296 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 40 | |
---|---|
Input | 9,6 W |
Luminous flux | 1.728 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 50 | |
---|---|
Input | 12,0 W |
Luminous flux | 2.160 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 60 | |
---|---|
Input | 16,8 W |
Luminous flux | 3.024 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 70 | |
---|---|
Input | 19,2 W |
Luminous flux | 3.456 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 80 | |
---|---|
Input | 21,6 W |
Luminous flux | 3.888 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 90 | |
---|---|
Input | 26,4 W |
Luminous flux | 4.752 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 100 | |
---|---|
Input | 28,8 W |
Luminous flux | 5.184 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 110 | |
---|---|
Input | 31,2 W |
Luminous flux | 5.616 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh- 120 | |
---|---|
Input | 36,0 W |
Luminous flux | 6.480 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 130 | |
---|---|
Input | 38,4 W |
Luminous flux | 6.912 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 140 | |
---|---|
Input | 40,8 W |
Luminous flux | 7.344 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 150 | |
---|---|
Input | 45,6 W |
Luminous flux | 8.208 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 160 | |
---|---|
Input | 48,0 W |
Luminous flux | 8.640 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 170 | |
---|---|
Input | 50,4 W |
Luminous flux | 9.072 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 180 | |
---|---|
Input | 55,2 W |
Luminous flux | 9.936 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 190 | |
---|---|
Input | 57,6 W |
Luminous flux | 10.368 lm |
Colour temperatur | 6.000 bis 7.000 K |
daytime onex fresh - 200 | |
---|---|
Input | 60,0 W |
Luminous flux | 10.800 lm |
Colour temperatur | 6.000 bis 7.000 K |
Dimensions
daytime onex fresh - 20 | |
---|---|
Profile length | 165 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 200 - 300 mm |
Suitable for aquarium volume | 15 - 30 l |
daytime onex fresh - 30 | |
---|---|
Profile length | 240 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 260 - 360 mm |
Suitable for aquarium volume | 20 - 40 l |
daytime onex fresh - 40 | |
---|---|
Profile length | 325 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 345 - 445 mm |
Suitable for aquarium volume | 30 - 50 l |
daytime onex fresh - 50 | |
---|---|
Profile length | 420 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 440 - 540 mm |
Suitable for aquarium volume | 40 - 60 l |
daytime onex fresh - 60 | |
---|---|
Profile length | 540 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 560 - 660 mm |
Suitable for aquarium volume | 50 - 70 l |
daytime onex fresh - 70 | |
---|---|
Profile length | 635 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 655 - 755 mm |
Suitable for aquarium volume | 60 - 80 l |
daytime onex fresh - 80 | |
---|---|
Profile length | 720 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 740 - 840 mm |
Suitable for aquarium volume | 70 - 90 l |
daytime onex fresh - 90 | |
---|---|
Profile length | 840 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 860 - 960 mm |
Suitable for aquarium volume | 80 - 100 l |
daytime onex fresh - 100 | |
---|---|
Profile length | 935 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 950 - 1.055 mm |
Suitable for aquarium volume | 90 - 110 l |
daytime onex fresh - 110 | |
---|---|
Profile length | 1.020 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.040 - 1.140 mm |
Suitable for aquarium volume | 100 - 130 l |
daytime onex fresh - 120 | |
---|---|
Profile length | 1.140 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.160 - 1.260 mm |
Suitable for aquarium volume | 110 - 140 l |
daytime onex fresh - 130 | |
---|---|
Profile length | 1.235 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.250 - 1.355 mm |
Suitable for aquarium volume | 120 - 150 l |
daytime onex fresh - 140 | |
---|---|
Profile length | 1.320 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.340 - 1.440 mm |
Suitable for aquarium volume | 130 - 150 l |
daytime onex fresh - 150 | |
---|---|
Profile length | 1.400 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.460 - 1.560 mm | Suitable for aquarium volume | 140 - 160 l |
daytime onex fresh - 160 | |
---|---|
Profile length | 1.535 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.555 - 1.655 mm |
Suitable for aquarium volume | 150 - 170 l |
daytime onex fresh - 170 | |
---|---|
Profile length | 1.620 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.640 - 1.740 mm |
Suitable for aquarium volume | 160 - 180 l |
daytime onex fresh - 180 | |
---|---|
Profile length | 1.740 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.760 - 1.860 mm |
Suitable for aquarium volume | 170 - 190 l |
daytime onex fresh - 190 | |
---|---|
Profile length | 1.835 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.860 - 1.960 mm |
Suitable for aquarium volume | 180 - 210 l |
daytime onex fresh - 200 | |
---|---|
Profile length | 1.920 mm |
Width | 20 mm |
Height | 11,5 mm |
Suitable for aquarium length | 1.940 - 2.040 mm |
Suitable for aquarium volume | 190 - 220 l |
Product Safety Notes
Signal word: Attention
Handling Notes:
- Before commissioning: Refer to the included safety instructions.
daytime
Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
General information
Item no. |
|
EAN | 4260565179184 |
Weight | 0,32 kg |
Shipping weight | 0,40 kg |
