Hiwi Pressure regulator

(15 ratings)

Can be used in combination with returnable cylinders
Suitable for use with inline atomizers
With highly precise fine needle valve
Manometer for working and cylinder pressure included
Facilitates precise adjustments to the CO₂ supply

In stock, only 20 left

Free shipping on orders over € 60,- within Germany Change region

Express delivery possible

1-3 business days - order within the next 7 minutes and we’ll deliver tomorrow at the earliest

I want to order to

confirm

€

79.

incl. VAT

free Shipping

Quantity:

Item is now in your shopping cart!

View my cart

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

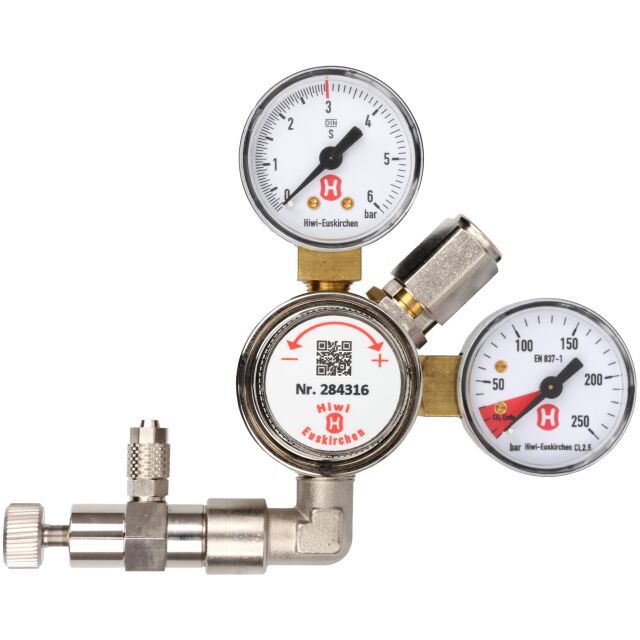

This high-quality pressure regulator is used for regulating the pressure of approx. 54 bar inside the cylinder to a working pressure of approx. 1 to 3 bar. By combining the working pressure manometer and the cylinder pressure manometer you can regulate the CO₂ supply very precisely and you know at once when it is time to refill the cylinder. The integrated fine needle valve allows a very precise regulation of the CO₂ supply for the aquarium.

Please keep in mind that all components of the pressure reducer have been glued together by the manufacturer. These can not be unscrewed without damaging them. If the needle valve is removed, the manufacturer's liability will expire prematurely. The hose connection on the fine needle valve is an exception. This is not glued in due to the fine thread, so that in the event of a defect, it is not necessary to replace the entire fine needle valve but only the hose connection.

In addition to this pressure regulator, a version with double stage chambers is also available, which can be used in aquariums with particularly sensitive fish in order to completely prevent an increased CO₂ load: Hiwi Double Stage Pressure Regulator

The Hiwi pressure regulator is also available with a fixed solenoid valve (SV) for night shut-off and with a Ceck valve (CV): Hiwi Pressure regulator + SV & CV

Manual (in German Language) - - download PDF

Features

The connection for the CO₂ tubing is equipped with a metric thread (M6)
The pressure regulator is designed for returnable cylinders
Thread: W21,8 x 14G
Seal included
The thread is made according to UK, Europe, Japan and Taiwan standard (BS341 / DIN477 / W21.8)
With German instructions of use
Suitable replacement seal Hiwi seal soft

Application

Please use the pressure regulator only after reading the operating instructions, which are linked above.

Make sure that you really start the pressure regulator with a CO₂ bottle.
Turn the working pressure adjustment screw (operating instructions 4) counterclockwise.
Close the fine needle valve (operating manual 5) by turning it clockwise. CAUTION: Tighten only slightly!
Position the pressure regulator so that the pressure gauges are facing upwards.
Fasten and tighten the pressure regulator to the CO₂ cylinder using the union nut (operating instructions 7). The union nut must be tightened by hand! Tools must not be used at this point!
It is essential to ensure that the seal is correctly seated and that the sealing surfaces are clean. If the seal is is damaged or lost, please replace it.

Dimensions

Hiwi Pressure Regulator
Width	135 mm
Height	120 mm
Depth	120 mm
Meas. from connection	65 mm

Hiwi

Hiwi is a renowned German manufacturer of CO₂ pressure regulators. The highest level of quality and a long useful life are in their focus. These high quality standards do not exclude attractive prices, though.

Especially in aquascaping, the addition of CO₂ for the plants is something very basic, and thus it is really important to choose good CO₂ supplying equipment. Hiwi meets even the highest quality standards in every aspect und is thus the best choice when it comes to CO₂ pressure regulators.
