daytime Smart Control SC25 onex/matrix/pendix
- Wi-Fi lighting controller for daytime onex, matrix and pendix
- Control via smartphone, tablet or PC
- Sunrise and sunset simulation
- Expert mode for customised lighting schedules
- Tool-free Plug & Play installation
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description

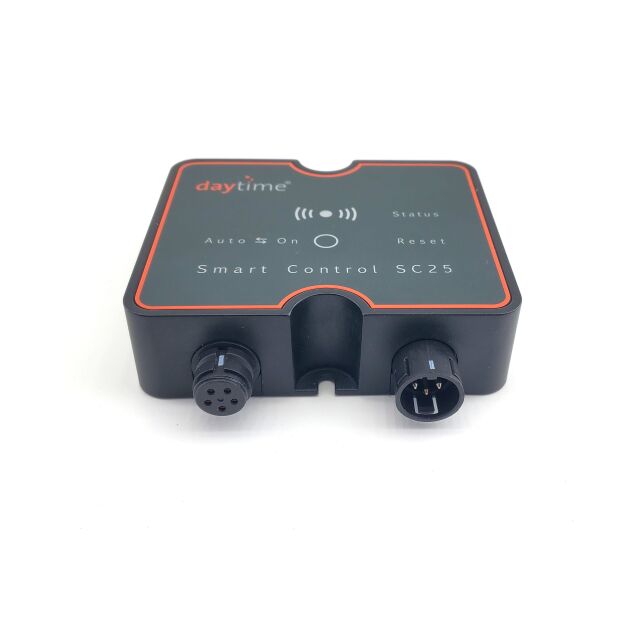

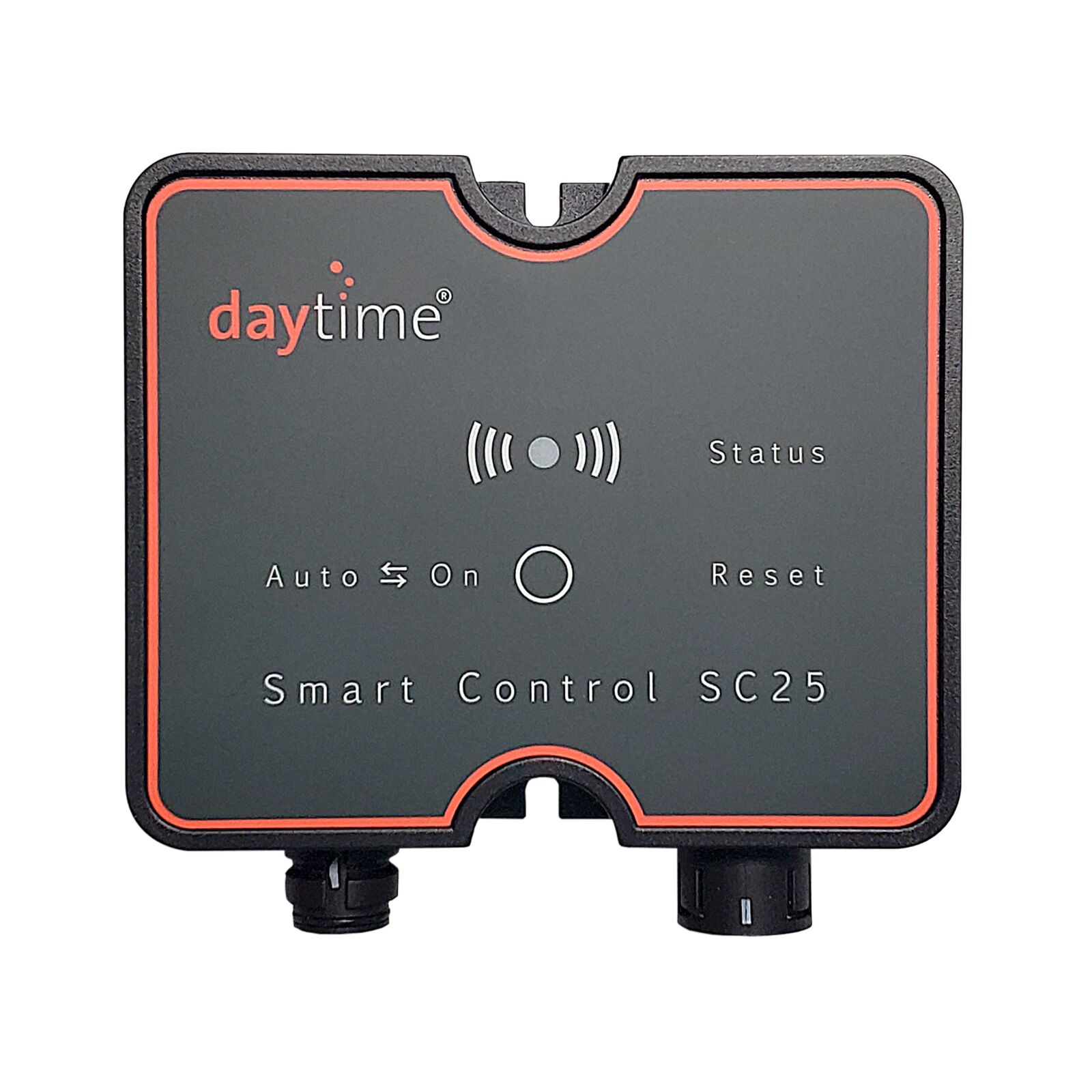

The daytime Smart Control SC25 is a powerful Wi-Fi lighting controller for daytime onex, matrix and pendix LED systems. Natural lighting scenarios can be conveniently programmed and controlled via a web browser using a smartphone, tablet or PC.
With features such as sunrise and sunset simulation, dawn and dusk effects, cloud and moonlight simulation, as well as freely configurable daily lighting schedules, the SC25 creates natural lighting conditions in the aquarium. Thanks to the expert mode, brightness, dimming duration and colour composition can be individually adjusted.
The guided Quick Start configuration allows commissioning in just a few simple steps. In addition, preconfigured freshwater and marine setups are available for import. Features such as acclimatisation mode, demo mode, import and export of lighting profiles, and wireless master/slave linking of multiple controllers significantly expand the available options. Thanks to the Plug & Play system, the controller can be installed tool-free between the converter and the light unit.
Features
- Wi-Fi lighting controller for daytime onex, matrix and pendix
- Control via smartphone, tablet or PC using a web browser
- Sunrise and sunset simulation
- Dawn and dusk effects
- Random cloud simulation
- Moonlight function with lunar cycle simulation
- Acclimatisation function for new aquarium inhabitants
- Expert mode with freely programmable daily lighting schedules
- Real-time control via slider function
- Demo mode for previewing lighting programmes
- Master/slave function for multiple controllers
- Import and export of lighting profiles
- Software updates via Wi-Fi
- Quick Start assistant for easy setup
- 4-colour WRGB channels
- Plug & Play installation
- Maximum load capacity: 240 W
Application
The Smart Control SC25 is connected tool-free between the converter and the light unit. Setup is then carried out via Wi-Fi using a smartphone, tablet or PC. Daily lighting schedules, dimming times, cloud effects, moonlight and other lighting functions can be programmed individually. Please note: Compared to the matrix and pendix LED systems, the white, red and blue LEDs of the onex Color version cannot be controlled separately.
Technical Data
| daytime Smart Control SC25 | |
|---|---|
| Power consumption | less than 1 W |
| Power connection | no additional power connection required |
| Load capacity | For up to 240 W |
Dimensions
| daytime Smart Control SC25 | |
|---|---|
| Length | 95 mm |
| Width | 90 mm |
| Height | 27 mm |
| Suitable for | daytime onex, matrix and pendix |
| Suitable for (with adapter) | backlights, cobras and onex black Dennerle versions |
Product Safety
Warnings:
- Before commissioning, carefully read and follow the enclosed safety instructions.
- Use the product only in accordance with the manufacturer's instructions.
General Information:
- This product is intended exclusively for controlling compatible daytime LED systems.
- The enclosed safety instructions form an integral part of the product and must be retained for future reference.
Handling Instructions:
- Keep out of reach of children.
- Observe the enclosed safety instructions before installation and commissioning.
daytime
Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
Manufacturer information
| Manufacturer | |
|---|---|
| Name | Tropical Heimtierbedarf Deutschland GmbH |
| Street | Bühlfelderweg 12 |
| City | 94239 Ruhmannsfelden |
| State | Bayern |
| Country | Deutschland |
| info@daytime.de | |
| Website | www.daytime.de |
General information
| Item no. |
|
| EAN | 4250884407037 |
| Weight | 0,15 kg |
| Shipping weight | 0,19 kg |
