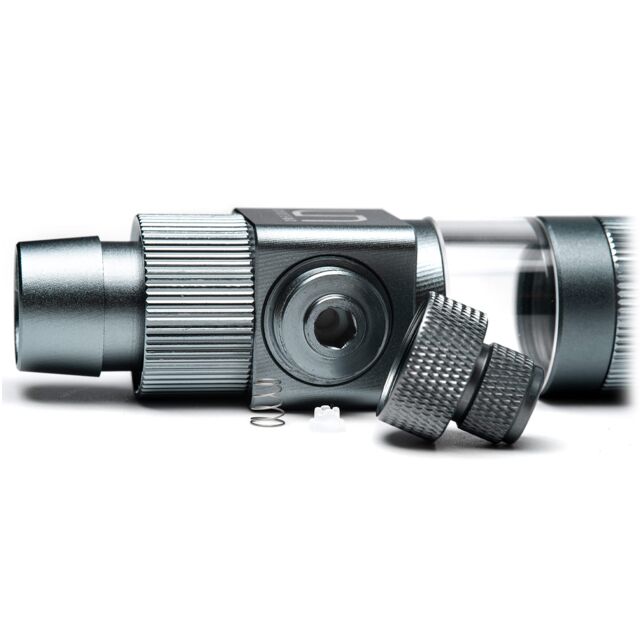

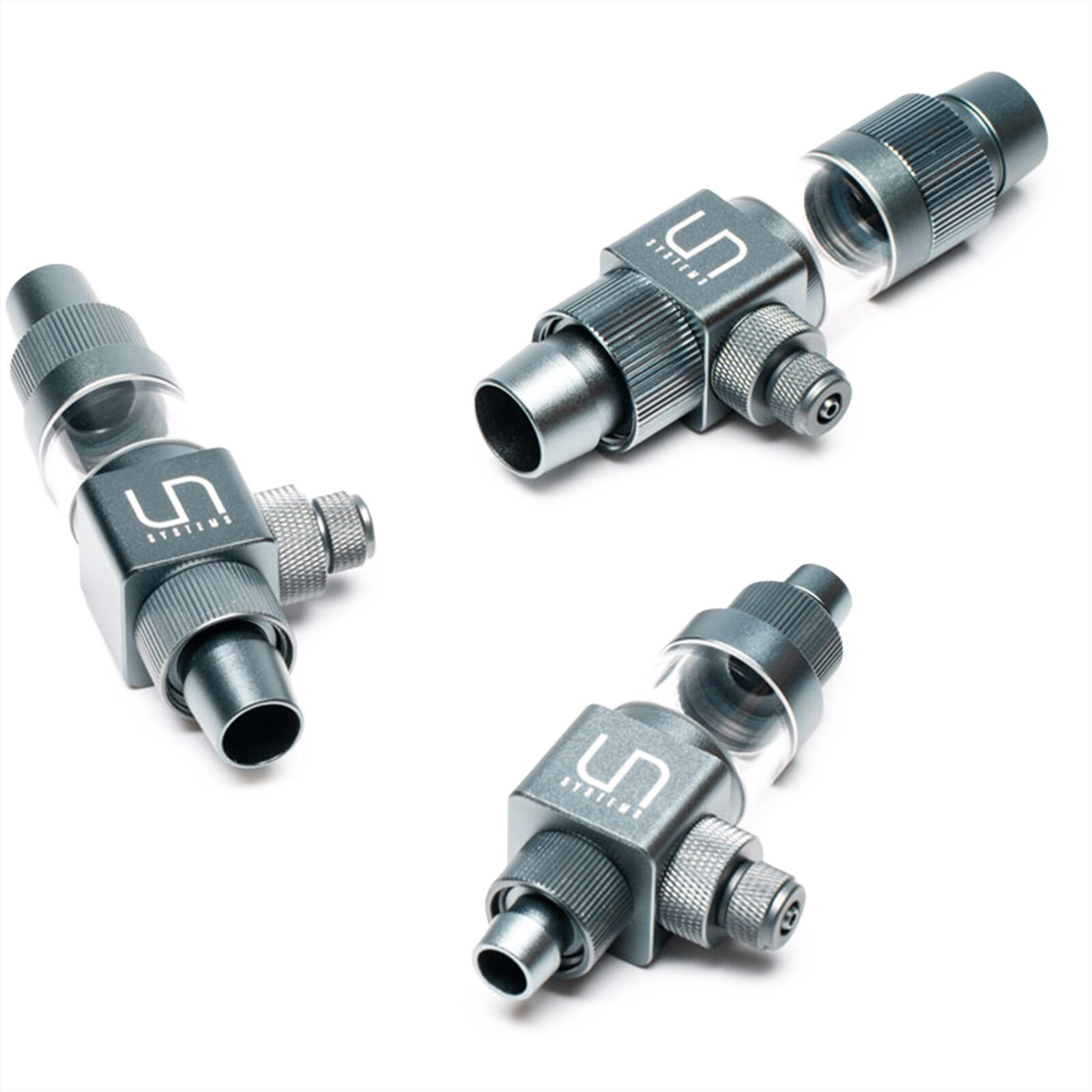

UNS Inline CO2 Diffusor
- Inline CO2 diffuser for installation in filter hose
- Efficient CO2 dissolution in the filter circuit
- Very fine CO2 bubbles via ceramic membrane
- Transparent diffusion chamber for CO2 flow monitoring
- Suitable for external filter systems
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
The UNS Inline CO2 Diffuser enables particularly efficient and discreet CO2 diffusion in planted aquariums. It is integrated directly into the filter hose of an external filter and dissolves the supplied CO2 in the flowing water. This means the gas is finely atomised within the filter circuit and distributed optimally throughout the aquarium.
Thanks to the inline installation outside the aquarium, the layout inside the tank remains free from visible equipment. The microbubbles produced dissolve quickly in the water, resulting in a highly efficient CO2 supply for aquatic plants. At the same time, visible CO2 bubbles in the aquarium are significantly reduced.
The housing is made of high-quality aluminium and features a transparent diffusion chamber for easy monitoring of the CO2 supply. An integrated ceramic membrane ensures particularly fine atomisation of the CO2. The diffuser can be integrated easily into existing CO2 systems and is ideal for aquascaping aquariums and heavily planted layouts.
Features
- Inline CO2 diffuser for installation in the filter hose
- Efficient CO2 dissolution in the filter circuit
- Very fine CO2 microbubbles
- No visible equipment inside the aquarium
- High-quality aluminium housing
- Transparent diffusion chamber for monitoring the CO2 supply
- Ceramic membrane for fine CO2 atomisation
- Compact design
- Easy integration into existing CO2 systems
Application

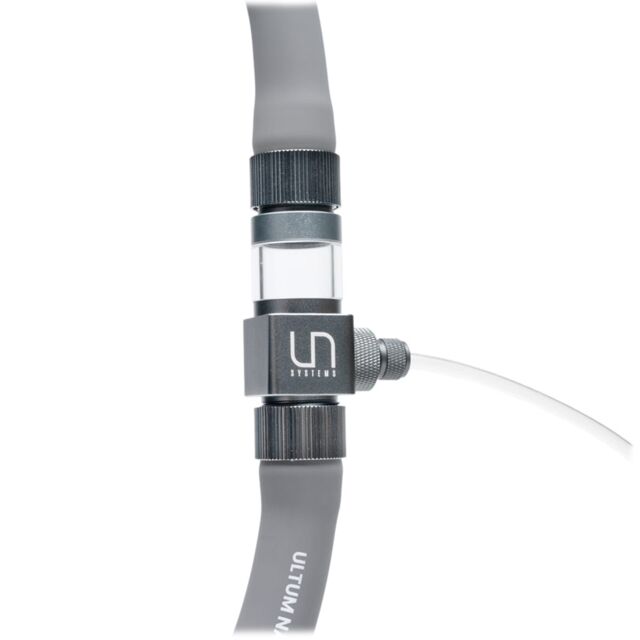

The diffuser is installed in the return hose of an external filter. CO2 is fed into the diffusion chamber via a hose connection and finely atomised there through a ceramic membrane. The CO2-enriched water is then returned to the aquarium through the filter outlet.
Dimensions

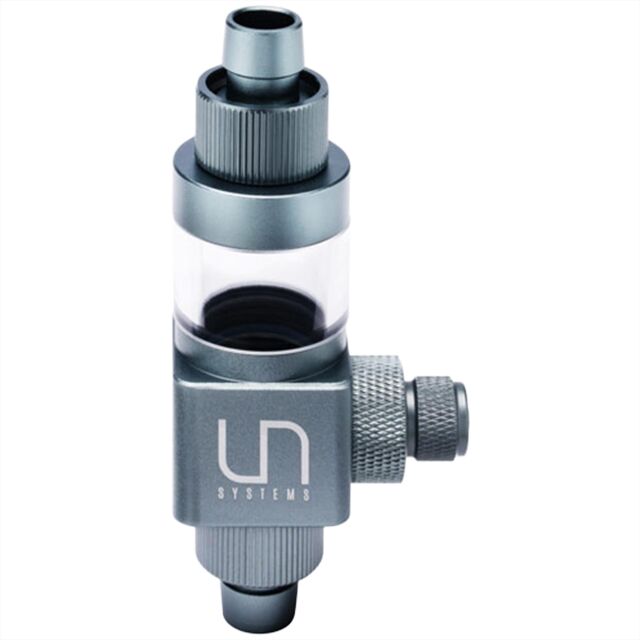

| UNS Inline CO2 Diffuser – 12/16 mm | |
|---|---|
| Length | 110 mm |
| Width | 20 mm |
| Height | 30 mm |

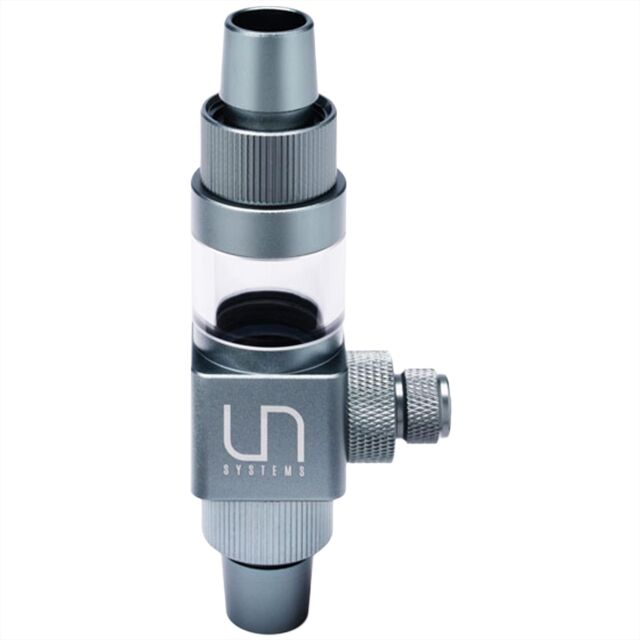

| UNS Inline CO2 Diffuser – 16/22 mm | |
|---|---|
| Length | 120 mm |
| Width | 30 mm |
| Height | 50 mm |

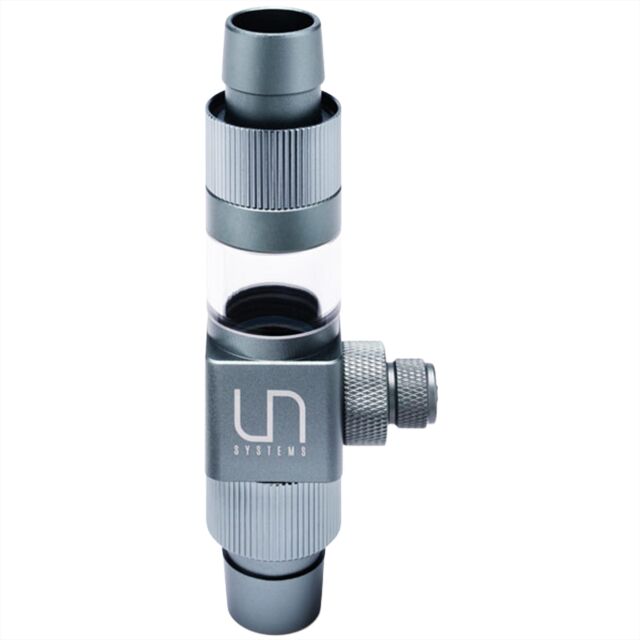

| UNS Inline CO2 Diffuser – 19/25 mm | |
|---|---|
| Length | 130 mm |
| Width | 30 mm |
| Height | 50 mm |
Cleaning
For cleaning, the diffuser can be removed from the hose system. Limescale and algae deposits can be removed carefully using a suitable cleaning agent. Rinse thoroughly with water afterwards.
