JDAquatec Maxi reactor + bypass
- Effortless CO2 enrichment via the filter circuit
- Easy technology
- With integrated bypass
- Suitable for all flow rates
- For 500-10.000 l
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description

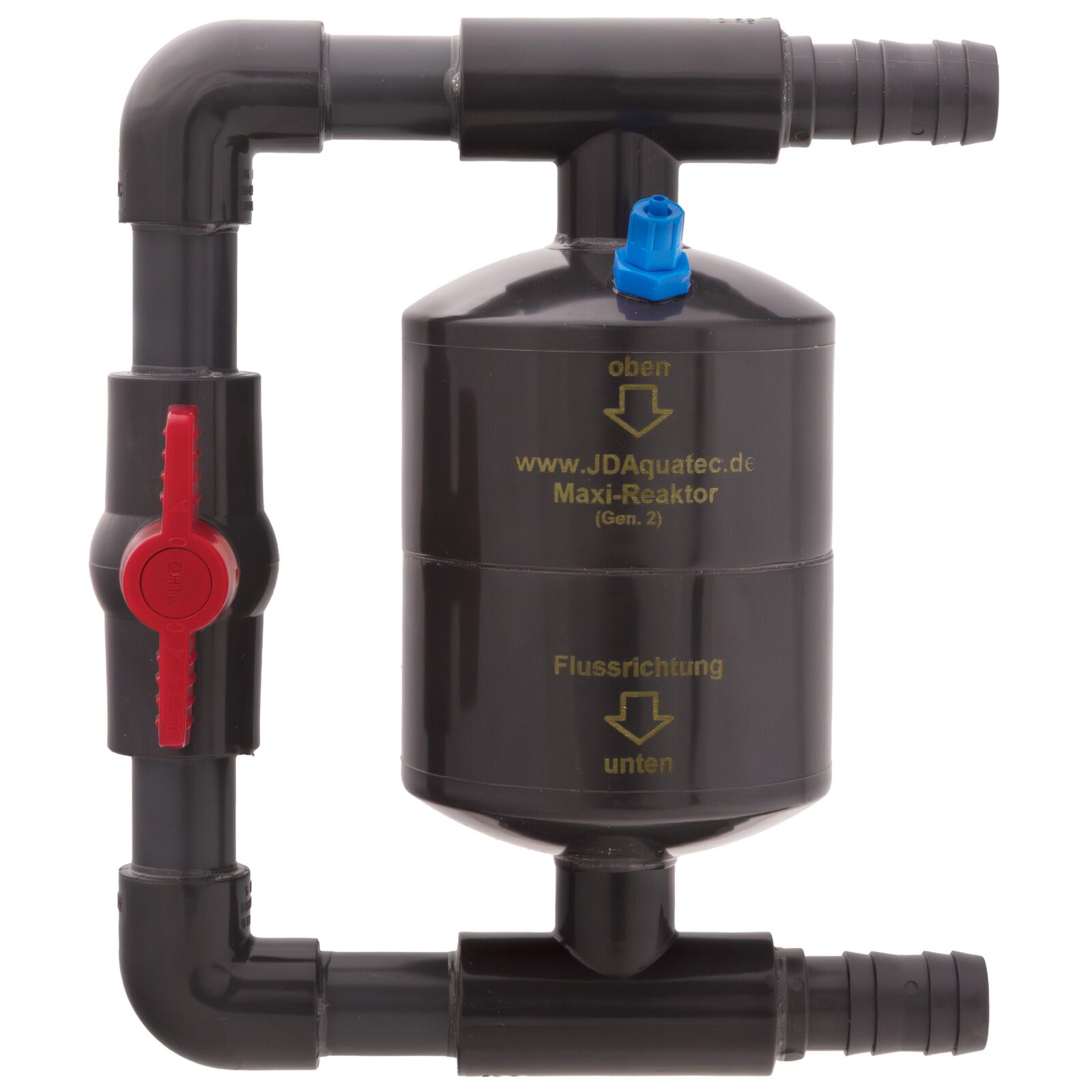

The JDAquatec Maxi Reactor with a fixed bypass has been specifically designed for large aquariums and very high flow rates. Thanks to the integrated bypass system with ball valve, the filter’s performance remains fully maintained, even when operated with extremely powerful pumps. The Maxi Reactor is suitable for tanks from 500 up to an impressive 10.000 litres and achieves a CO2 dissolution capacity of up to 4.000 bubbles per minute. The sturdy mounting clamp and robust construction allow secure and flexible integration into existing filter systems, entirely without additional support bracket.
The reactor is installed vertically discreetly outside the aquarium between the filter and the hose leading back into the tank. There, it is secured firmly using the tight-fitting mounting clamp. As the system operates without a diffusion membrane, the water is enriched directly with CO2 as it flows through and is then distributed evenly throughout the aquarium via the entire filter circuit.This enormous dissolution efficiency is achieved by a specially generated water vortex inside the reactor. This vortex keeps the injected CO2 in the upper section of the reactor until it is completely dissolved in the water. Unlike many other systems, the reactor operates without trickle media or other internal components that could become clogged over time. As a result, the system operates extremely reliably and is completely maintenance-free.
To control the CO2-concentration in the aquarium, a drop checker is recommended. Furthermore, the upstream CO2-system should be protected from backflowing water with an appropriate check valve.
The Maxi Reactor can also be used for saltwater aquariums. However, it is recommended to use it only in nitrogen and phosphate limited marine tanks and to perform a consistent pH-control.
Features
- High-performance CO2 reactor for large aquariums
- Fixed bypass with ball valve
- Suitable for extremely high flow rates
- Creates a specialised water vortex for complete CO2 dissolution
- Without trickle media – no risk of clogging
- Completely maintenance-free
- Sturdy, tight-fitting mounting clamp
- CO2 dissolution capacity of up to 4.000 bubbles/minute
- For aquariums from 500 to 10.000 litres
- Also suitable for marine aquariums
Dimensions
| JDAquatec Maxi Reactor + Bypass – 16 mm | |
|---|---|
| Height | 22 cm |
| Width | 18 cm |
| Depth | 11 cm |
| Recommended for aquariums | up to 6.000 litres |
| CO2 dissolution capacity | up to 3.000 bubbles/minute |
| Hose connection | 16 mm (inner diameter) |
| JDAquatec Maxi Reactor + Bypass – 20 mm | |
|---|---|
| Height | 22 cm |
| Width | 18 cm |
| Depth | 11 cm |
| Recommended for aquariums | up to 10.000 litres |
| CO2 dissolution capacity | up to 4.000 bubbles/minute |
| Hose connection | 20 mm (inner diameter) |
| JDAquatec Maxi Reactor + Bypass – 25 mm | |
|---|---|
| Height | 22 cm |
| Width | 18 cm |
| Depth | 11 cm |
| Recommended for aquariums | up to 10.000 litres |
| CO2 dissolution capacity | up to 4.000 bubbles/minute |
| Hose connection | 25 mm (inner diameter) |
Scope of Delivery
- Maxi CO2 Reactor
- Fixed bypass with ball valve

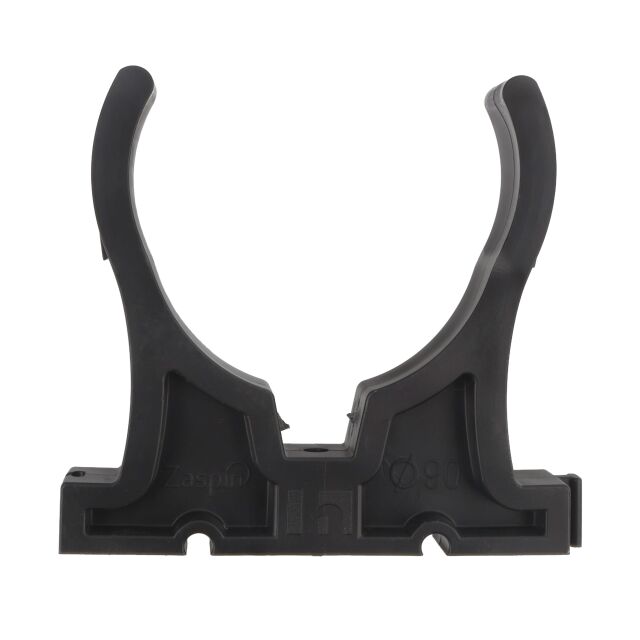

- Mounting clamp
JDAquatec
JDAquatec is a German manufacturer of aquarium technology with a focus on CO2 systems for freshwater aquariums. The products are designed for efficient injection and controlled dosing of carbon dioxide within the aquarium system. Well-engineered constructions with integrated bypass functions support an even distribution in the water circulation. The technology is developed for straightforward installation and reliable long-term operation. JDAquatec addresses aquarists who aim to promote healthy plant growth and maintain stable water parameters in planted aquariums.
