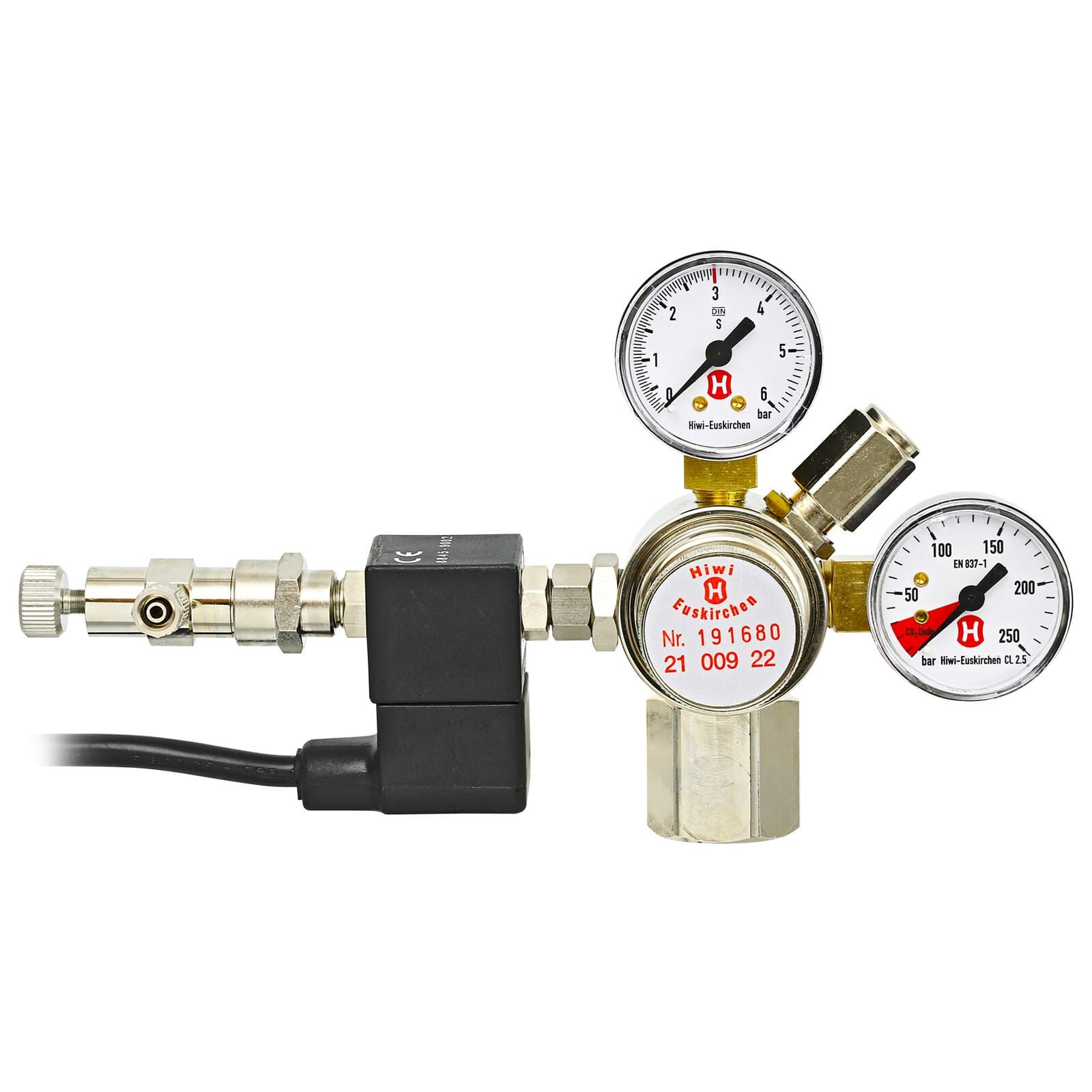

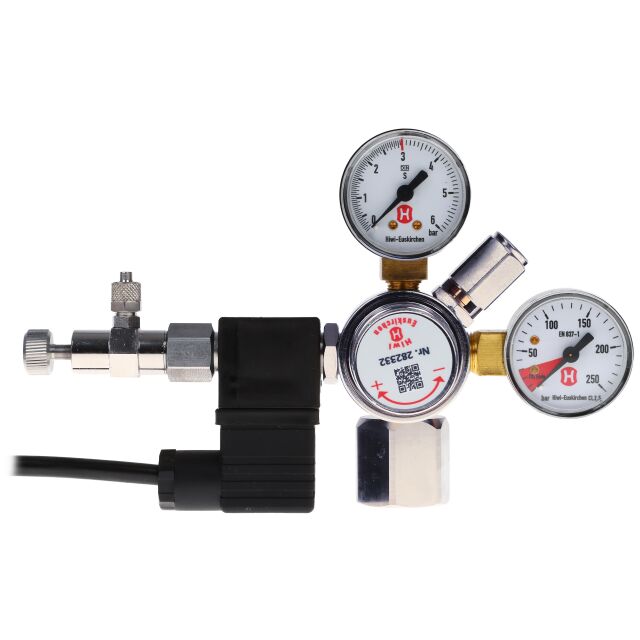

Hiwi Pressure regulator + SV + RV + Adapter for Sodastream Cylinder
- Can be used in combination with Sodastream cylinders
- Suitable for use with inline atomizers
- With highly precise fine needle valve
- Manometer for working and cylinder pressure included
- Bubble Counter included
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
This high-quality pressure regulator by Hiwi is specially designed for the use on Sodastream cylinders. No additional adapter purchase is required. It is operated to reduce the pressure inside the cylinder to a working pressure of approx. 1 to 3 bar. By combining the working pressure manometer and the cylinder pressure manometer you can regulate the CO2 supply very precisely and you know at once when it is time to change the cylinder. The integrated fine needle valve allows a very precise regulation of the CO2 supply for the aquarium. In addition, a check valve secures the pressure regulator from back running water. Moreover, this pressure regulator comes with a preinstalled solenoid valve for a night shut off, so that inhabitants of the tank, like e.g. fish and shrimps, can recover from the elevated CO2 levels during the day. The solenoid valve is closed when without current. A bubble counter is also included in the scope of delivery, which can be screwed directly onto the pressure regulator if desired. The procedure is described in detail in the linked instructions.
Please keep in mind that all components of the pressure reducer have been glued together by the manufacturer. These can not be unscrewed without damaging them. If the needle valve is removed, the manufacturer's liability will expire prematurely. The hose connection on the fine needle valve is an exception. This is not glued in due to the fine thread, so that in the event of a defect, it is not necessary to replace the entire fine needle valve but only the hose connection. The union nut on the needle valve can also be removed if necessary to mount the included bubble counter.
Features
- The connection for the CO2 tubing is equipped with a metric thread (M6)
- The pressure regulator is designed for Sodastream cylinders only
- An adapter for the Sodastream cylinder thread is already installed
- Bubble counter included and can be installed if required
- 1.5 m power supply cord with Schuko plug
- Power supply: 230 V AC; 50/60 Hz; 1.6 VA open
- Closed when without current
- 100 % ED (suitable for continuous operation)
- Permissible temperature: -30 °C to +130 °C
- Max. ambient temperature: 40 °C
- Protection class IP65 (dust-proof and protected against jets of water)
- Insulation class F (155 °C) screwed to plug
- Max. pressure difference when operating the solenoid valve: 16 bar
- A check valve secures the entire CO2 system and is permanently installed with the solenoid valve and pressure regulator
- With German instructions of use
- Suitable replacement as Set or separate Hiwi seal
Application
Please use the pressure reducer only after reading the operating instructions, which are linked above.
- Make sure that you really start the pressure reducer with a CO2 cylinder.
- Turn the working pressure adjustment screw (operating instructions 4) counterclockwise.
- Close the fine needle valve (operating instructions 7) by turning it clockwise. CAUTION: Tighten only slightly!
- Position the pressure reducer so that the pressure gauges are facing upwards.
- Fasten and tighten the pressure reducer to the CO2 cylinder using the union nut (operating instructions 5). The union nut must be tightened by hand! Tools must not be used at this point!
- It is essential to ensure that the seal is correctly seated and that the sealing surfaces are clean. If the seal is damaged or lost, please replace it.
Dimensions
| Hiwi Pressure Regulator + SV + CV + Adapter | ||
|---|---|---|
| Width | 180 mm | |
| Height | 120 mm | |
| Depth | 85 mm | |
| Meas. from connection | 125 mm | |
Hiwi
Hiwi is a renowned German manufacturer of CO2 pressure regulators. The highest level of quality and a long useful life are in their focus. These high quality standards do not exclude attractive prices, though.
Especially in aquascaping, the addition of CO2 for the plants is something very basic, and thus it is really important to choose good CO2 supplying equipment. Hiwi meets even the highest quality standards in every aspect und is thus the best choice when it comes to CO2 pressure regulators.
Manufacturer information
| Manufacturer | |
|---|---|
| Name | Hiwi Getränkearmaturenbau & -handels GmbH & Co. KG |
| Street | Felix-Wankel-Str. 5 |
| City | 53881 Euskirchen |
| State | Nordrhein-Westfalen |
| Country | Deutschland |
| info@hiwi.de | |
| Website | www.hiwi.de |
General information
| Item no. |
|
| EAN | |
| Weight | 1,00 kg |
| Shipping weight | 2,10 kg |
