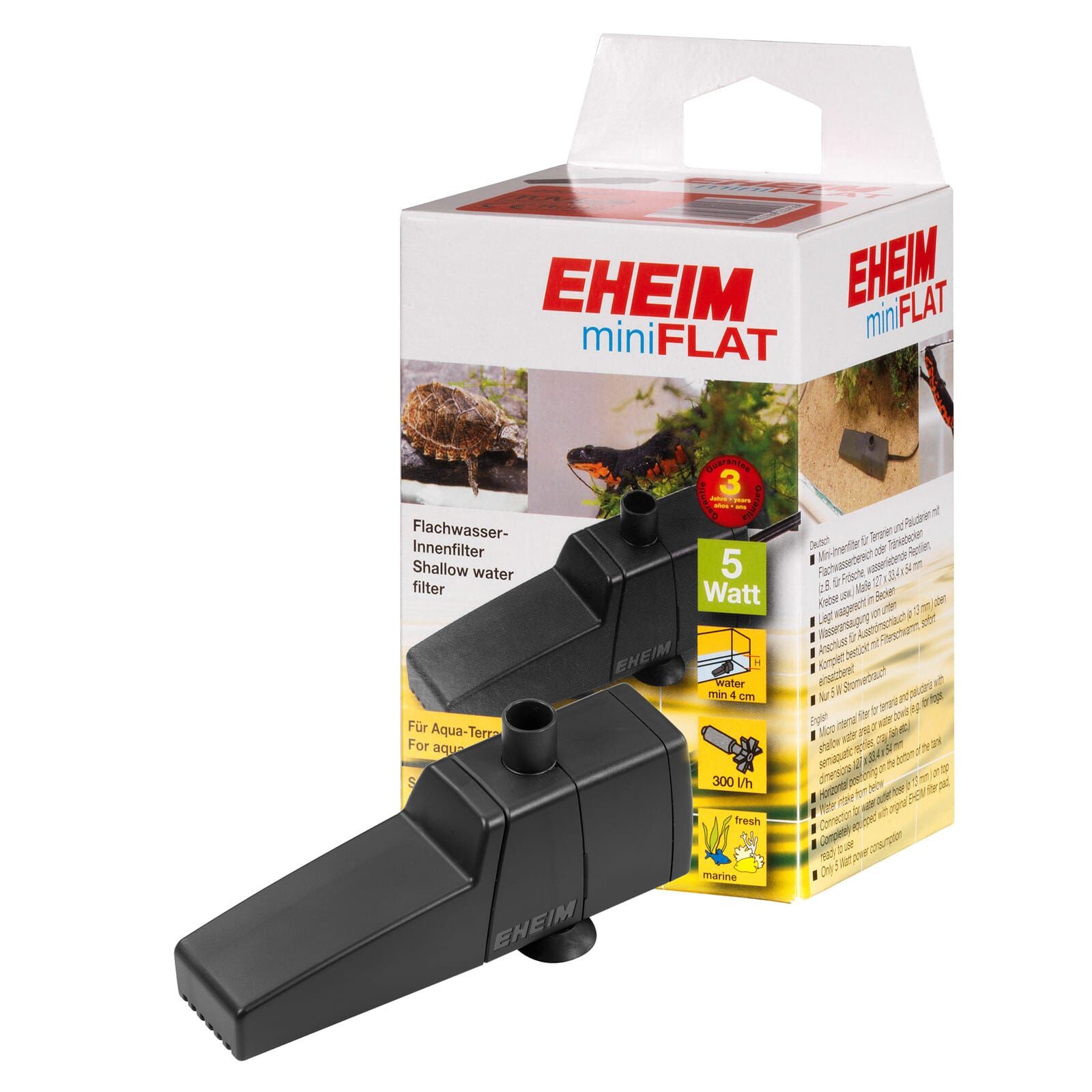

EHEIM miniFLAT

(0 ratings)

Water intake from below
Available with EHEIM filter pad
Only 5 Watt power consumption

In stock, only 4 left

Free shipping on orders over € 60,- within Germany Change region

Express delivery possible

1-3 business days - order today and we’ll deliver next week on Tuesday at the earliest

I want to order to

confirm

€

24.

incl. VAT

plus € 5,90 Shipping

Quantity:

Item is now in your shopping cart!

View my cart

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

The MiniFLAT by EHEIM in an unique little flat water filter and is designed differently to an internal aquarium filter: It does not hang on to anything, but rather lies horizontally in the water. It is fixed with suction cups to the bottom of the tank. Here it draws the water in from below, pumps it through the filter sponge and directs it out filtered at the top. The surface water movement makes the drinking water for reptiles visible. The MiniFLAT can also connect with an outlet hose in order to adjust the outflow direction. .

The MiniFLAT is available with the filter pad, ready to use. It is suitable for terrariums and paludariums with shallow water area or water bowls.

Manual EHEIM miniFLAT - - download PDF

Features

Water intake from below
Extremly flat designed
Available with EHEIM filter pad
Very energy efficient
Adjustable stream
Suitable for marine water (salt)

Technical data

EHEIM MiniFLAT
Power consumption	5 W
Flow rate	300 l/h
Suitable for Aquariums	20 to 30 litres

Dimensions

EHEIM MiniFLAT
Width	33,4 mm
Height	127 mm
Depth	54 mm
Diameter hose connection	12/16 resp. 13 mm

Scope of Delivery

Motor housing
Impeller
Pump cover with flow control
Suction cups (3x)
Filter cartridge
Filter container

Product safety

Caution: Electricity hazard

Warning notes:

Do not allow the device packaging and small parts to come into the hands of children or persons who are not aware of their actions, as this may pose hazards (risk of suffocation!). Keep away from animals.
This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless supervised or instructed accordingly and they understand the dangers.
This device may be used by children aged 8 and above and by persons with reduced capabilities, if supervised or instructed and if they understand the associated risks. Children must not play with the device. Cleaning and maintenance must only be carried out under supervision.
Immediately disconnect all devices in the aquarium from the mains in the event of a leakage or if the residual current device trips.
Always disconnect all devices in the aquarium from the mains when not in use, before installing or removing parts, and before all cleaning and maintenance work.
Protect the socket and plug from moisture and wetness. Always form a drip loop with the power cable to prevent water from reaching the socket and causing a short circuit.
The electrical specifications of the device must match the power supply. You can find this information on the rating plate, packaging or in the manual.

General notes:

The device must never be operated outside of water.
The power cable of this device cannot be replaced. If the cable is damaged, the device must be disposed of.

Handling notes:

Perform a visual inspection before use to ensure that the device, power cable and plug are undamaged.
Repairs must only be carried out by an EHEIM service centre.
Only perform work that is described in the manual.
Never make technical modifications to the device.
Use only original spare parts and accessories for the device.
We recommend protecting all electrical aquarium devices with a residual current device rated at a maximum of 30 mA.

EHEIM

EHEIM stands for high-quality aquarium filters, manufactured in Germany. The product range includes external and internal filters as well as filter pumps, suitable for both planted aquariums and aquascapes. EHEIM places great emphasis on the highest quality standards and technical innovations. These features have made EHEIM a well-known name in the field of aquatics. Many people involved in aquarium keeping appreciate the reliability and durability of the products, which consistently ensure optimal water quality. Thanks to these qualities, EHEIM has been considered a reliable partner for efficient aquarium technology for many years.
