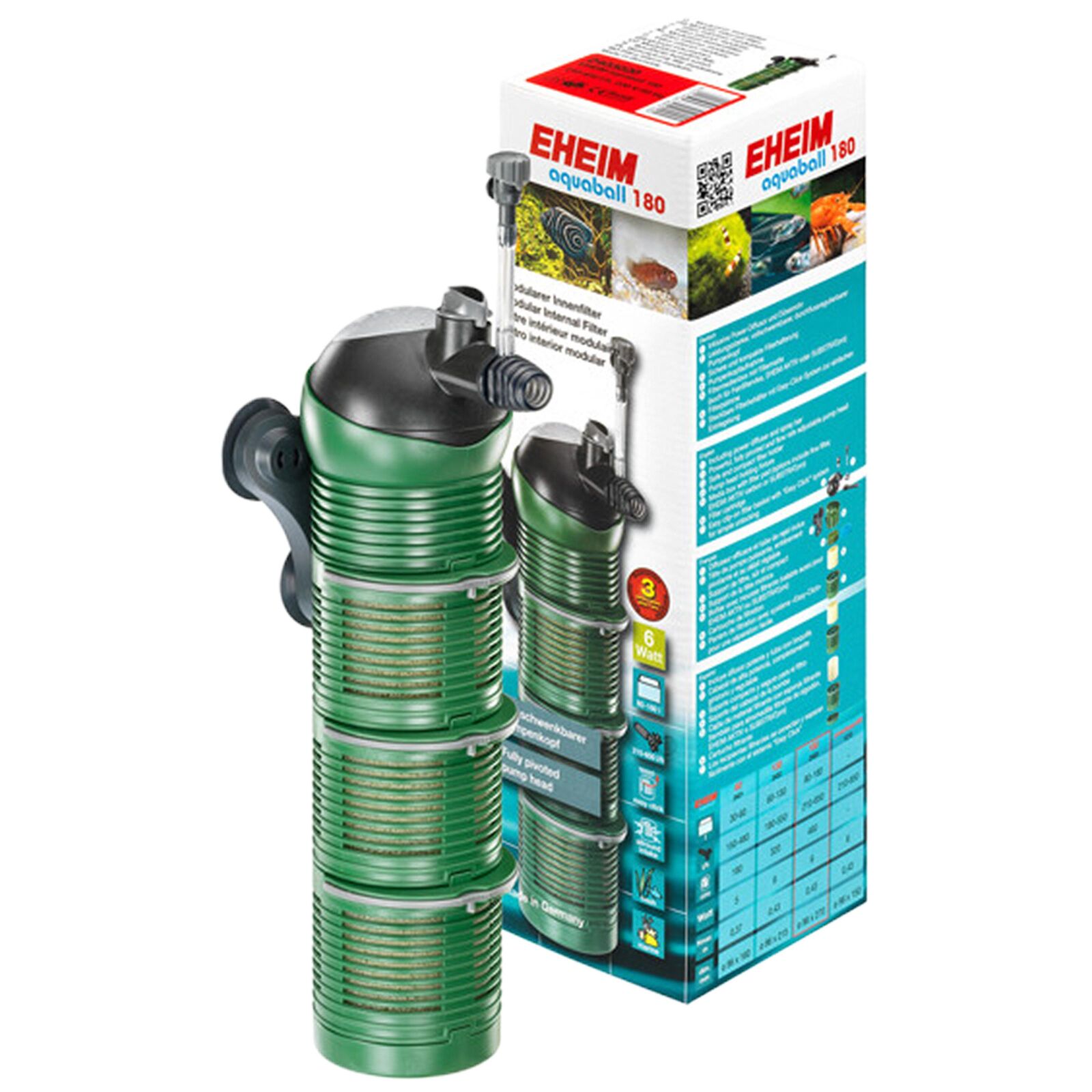

EHEIM aquaball

(0 ratings)

For aquariums up tp 180 litres
Adjustable flow rate
360° adjustable outlet
Modular filter system
Including filter cartridges

In stock, only 6 left

Free shipping on orders over € 60,- within Germany Change region

Express delivery possible

1-3 business days - order today and we’ll deliver next week on Monday at the earliest

I want to order to

confirm

Variation

180

€

59.

Please choose a variation

Item question

We’re here for you!

Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.

Thank you for your question!

Thank you, we’ll get in touch!

Close window

You already sent us a question.

Please wait a few minutes

Description

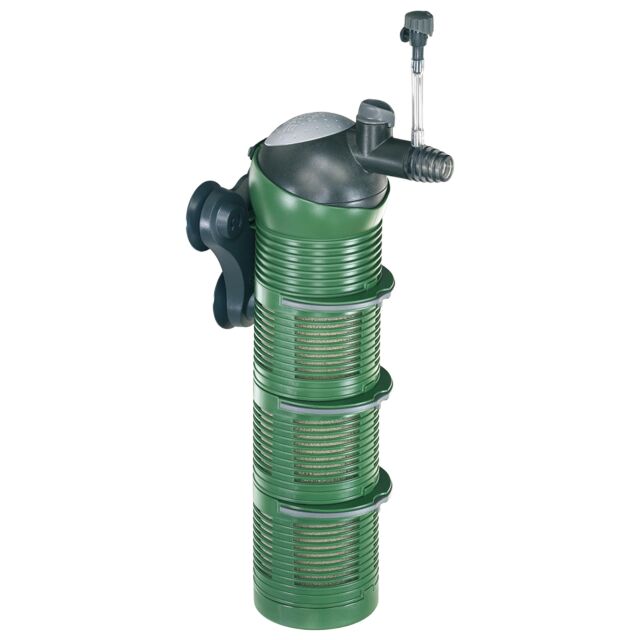

The EHEIM aquaball is a modular internal filter designed for freshwater aquariums up to 180 litres. Its fully adjustable ball head allows the water outlet to be directed exactly where needed, making the filter highly adaptable to a wide range of aquarium layouts.

The flow rate can be adjusted using the integrated flow control. The supplied Power Diffuser allows additional air to be introduced into the water, helping to increase oxygen levels in the aquarium.

Thanks to its modular design, the filter volume can be expanded to suit individual requirements. The filter modules can be easily removed and reattached using the Easy-Click locking system and can be filled with different filter media as required. The filter is supplied with matching filter cartridges and is ready for immediate use.

Manual EHEIM aquaball - - download PDF

Features

Fully adjustable ball head for precise positioning of the water outlet
Adjustable flow rate
Power Diffuser for adjustable air supply and improved oxygen enrichment
Easily removable filter modules with Easy-Click locking system
Compatible with a wide range of EHEIM filter media
Supplied with matching filter cartridges
Water outlet can be used with the diffuser, spray nozzle or additional accessories

Technical data

EHEIM aquaball 180
Max. flow rate	650 litres per hour
Power consumption	6 W
Filter volume	0.46 litres
Max. head height	0.40 m

Dimensions

EHEIM aquaball 180
Length	96 mm
Width	96 mm
Height	270 mm
Suitable for aquariums	approx. 80 to 180 litres

Scope of delivery

EHEIM aquaball internal filter
Power Diffuser with outlet nozzle
Modular filter system including filter cartridges
Mounting bracket with suction cups for aquarium installation

Product Safety Notes

Caution: Risk of Electric Shock

Warning notes:

Do not allow the device packaging or small parts to fall into the hands of children or persons who are not aware of their actions, as this may present hazards (risk of suffocation!). Keep away from animals.
Before use, carry out a visual inspection to ensure that the device, especially the power cable and plug, are undamaged.
Do not use the device if it is not functioning properly or if it is damaged.
Never use the device with a damaged power cable or power supply unit.
The power cable of this device cannot be replaced. If the power cable is damaged, the device must be disposed of.
Repairs may only be carried out by an authorised EHEIM service centre.
Never make technical modifications to the device.
The device should be protected by a residual current device (RCD) with a rated residual operating current of no more than 30 mA. If you have any questions or problems, consult a qualified electrician.
Always disconnect all devices in the aquarium from the mains when they are not in use, before installing or removing parts, and before carrying out any cleaning or maintenance work.
Protect the socket and mains plug from moisture. It is recommended to form a drip loop with the power cable to prevent water running along the cable from reaching the socket and causing a short circuit.
The electrical specifications of the device must match those of the mains supply. You can find this information on the rating plate, the packaging or in the instruction manual.

General notes:

Only use original spare parts and accessories intended for this device.
Only carry out work that is described in the instruction manual.
Do not carry the device by the power cable and always disconnect it from the mains by pulling the plug, never the cable or the device.
Protect the power cable from heat, oil and sharp edges.

Handling notes:

This device may be used by children aged 3 years and above, as well as by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the device and understand the resulting hazards. Children must not play with the device. Cleaning and user maintenance must not be carried out by children without supervision.
Persons with limited physical, sensory or mental capabilities or lacking experience and knowledge may only use the device under supervision or after receiving appropriate instruction. Children must be supervised to ensure that they do not play with the device.

EHEIM

EHEIM stands for high-quality aquarium filters, manufactured in Germany. The product range includes external and internal filters as well as filter pumps, suitable for both planted aquariums and aquascapes. EHEIM places great emphasis on the highest quality standards and technical innovations. These features have made EHEIM a well-known name in the field of aquatics. Many people involved in aquarium keeping appreciate the reliability and durability of the products, which consistently ensure optimal water quality. Thanks to these qualities, EHEIM has been considered a reliable partner for efficient aquarium technology for many years.
